64 11 943 Replacing evaporator temperature sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove AIRBAG module for driver's knee protection. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .
- Remove radio receiver. Refer to 51 45... REMOVING AND INSTALLING/REPLACING RADIO CUTOUT TRIM and 65 11 080 REMOVING AND INSTALLING/REPLACING RADIO RECEIVER .
- Remove cover. Refer to 64 11 377 REMOVING AND INSTALLING (REPLACING) CONTROL PANEL FOR HEATER - A/C SYSTEM .

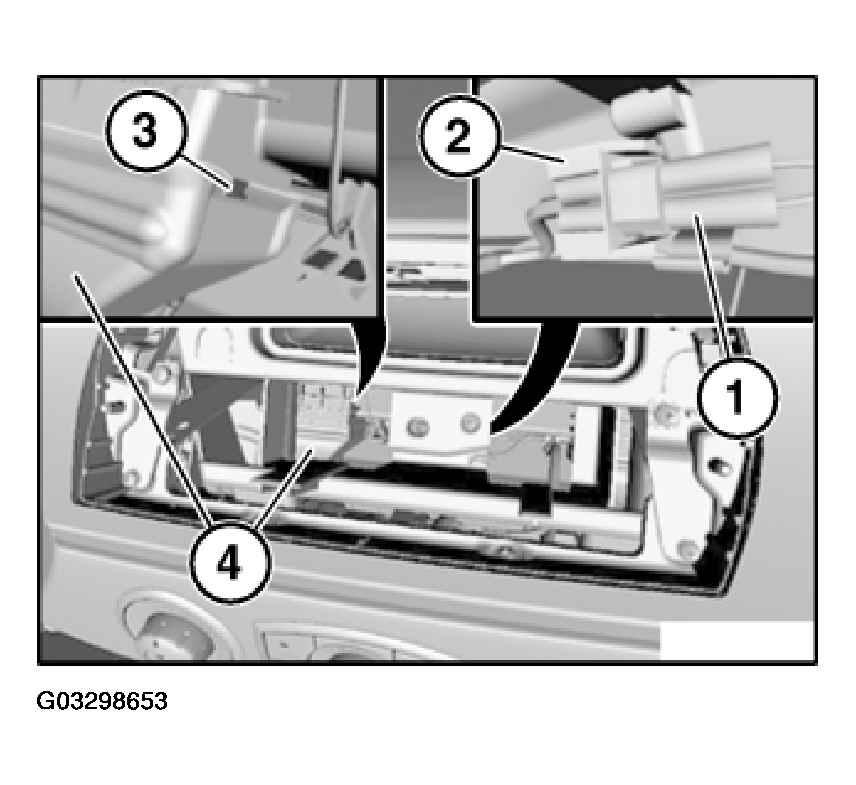

Unlock plug connection (1) and disconnect.
Unlock socket housing (2) and remove.
Unclip left footwell channel (4).
Installation:
Make sure left footwell channel (4) is correctly seated in retainer (3).

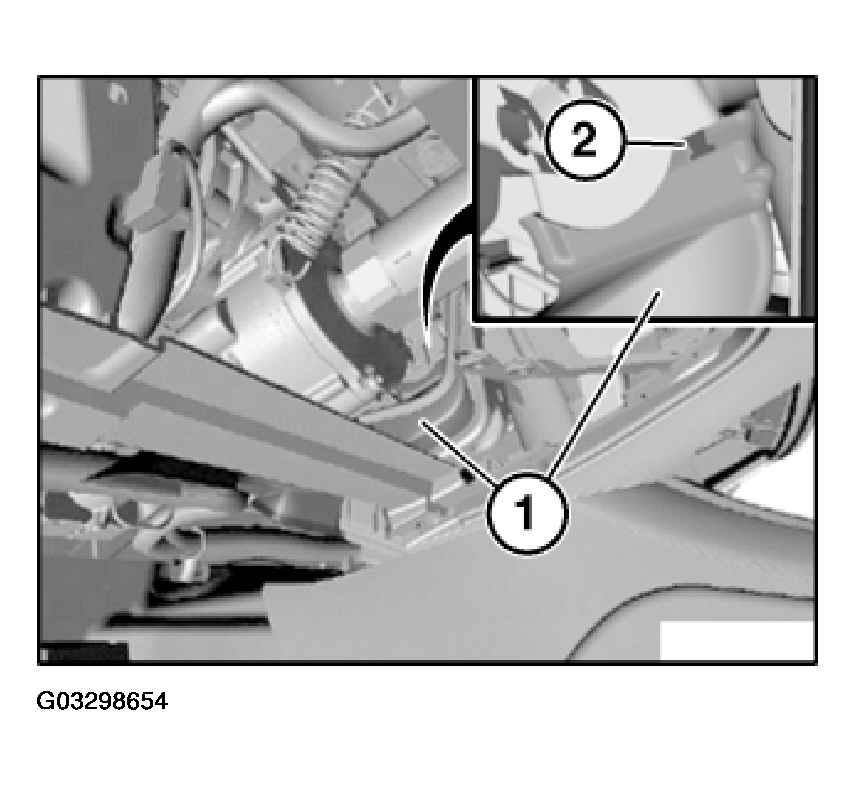

Unclip left footwell channel (1) and remove.
Installation:
Make sure left footwell channel (1) is correctly seated in retainer (2).

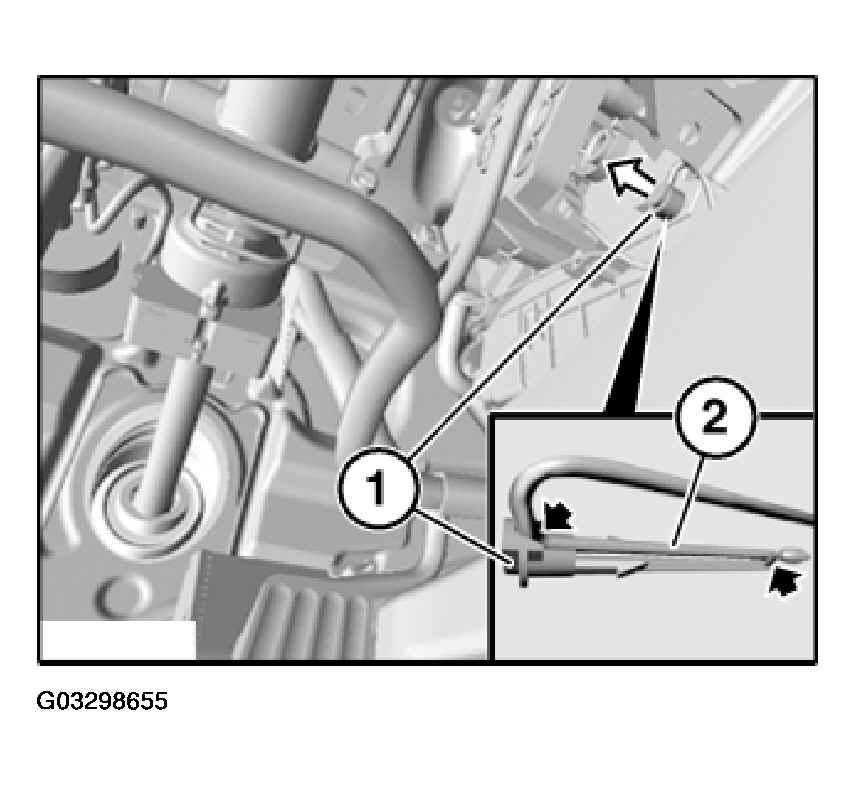

Pull out holder (1) with evaporator temperature sensor (2) in direction of arrow.
Installation:
Make sure evaporator temperature sensor (2) is correctly seated in holder (1).
Make sure holder (1) is correctly seated in heater - A/C housing.
