54 31 175 Removing and installing/replacing damper for variable convertible top compartment

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Close convertible top
Open rear lid.

Unclip handle cover towards rear.

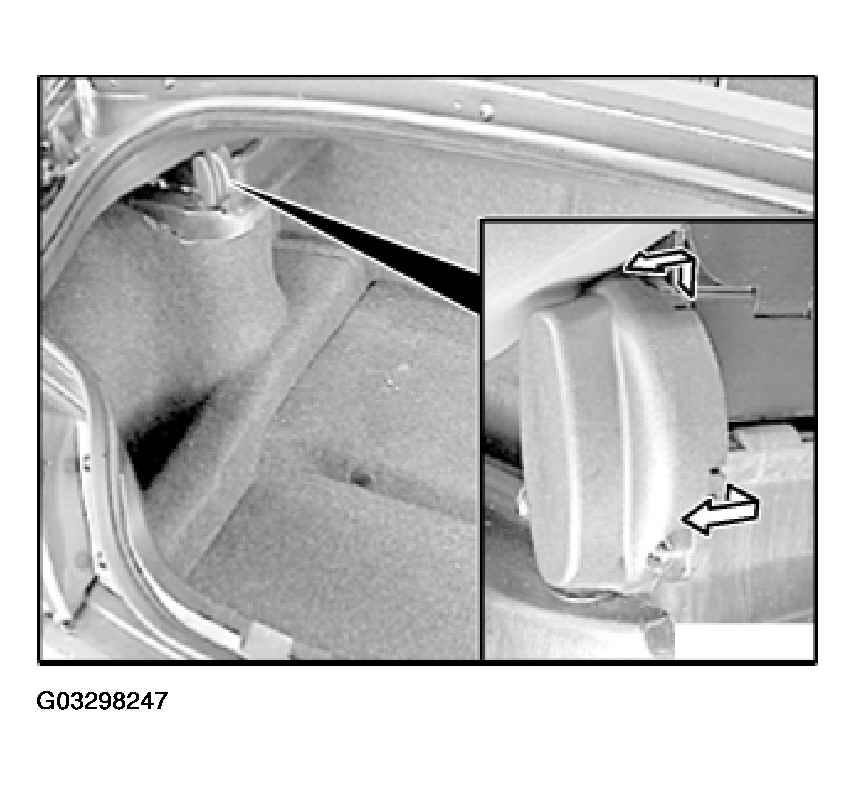

Fig 1: Uncliping Handle Cover Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Remove expansion rivet (1).

Remove damper (2) from shaft towards rear.

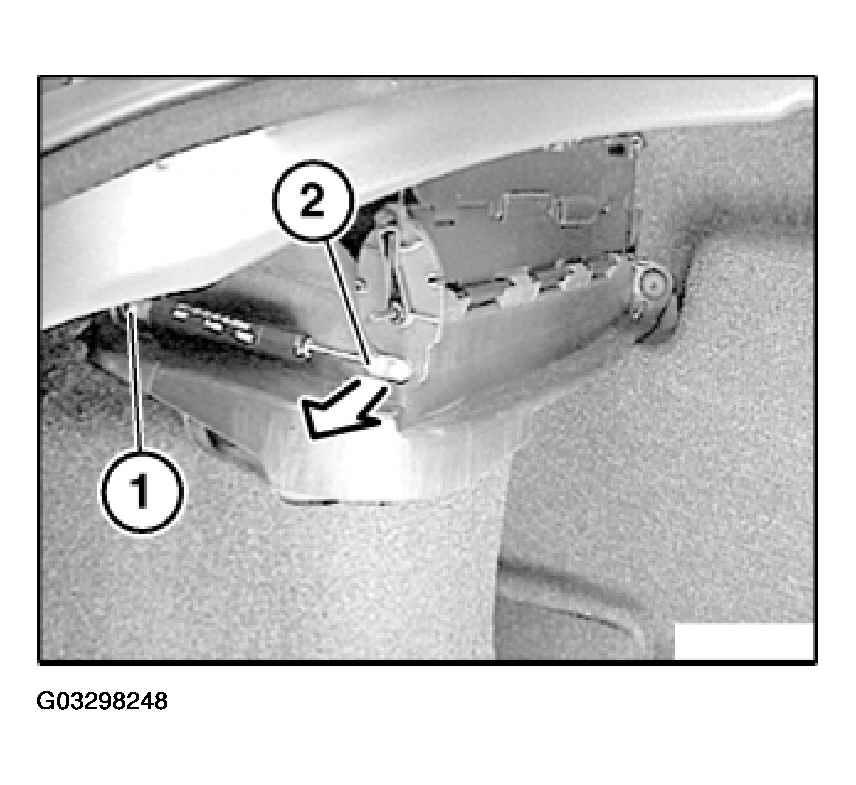

Fig 2: Removing Damper From Shaft Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.
