64 11 875 Removing and installing/replacing servodrive for defrosting flap

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim panel for pedal assembly, refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
Remove air distributor in footwell and heating duct in rear compartment on left, refer to 64 11 943 REPLACING EVAPORATOR TEMPERATURE SENSOR .

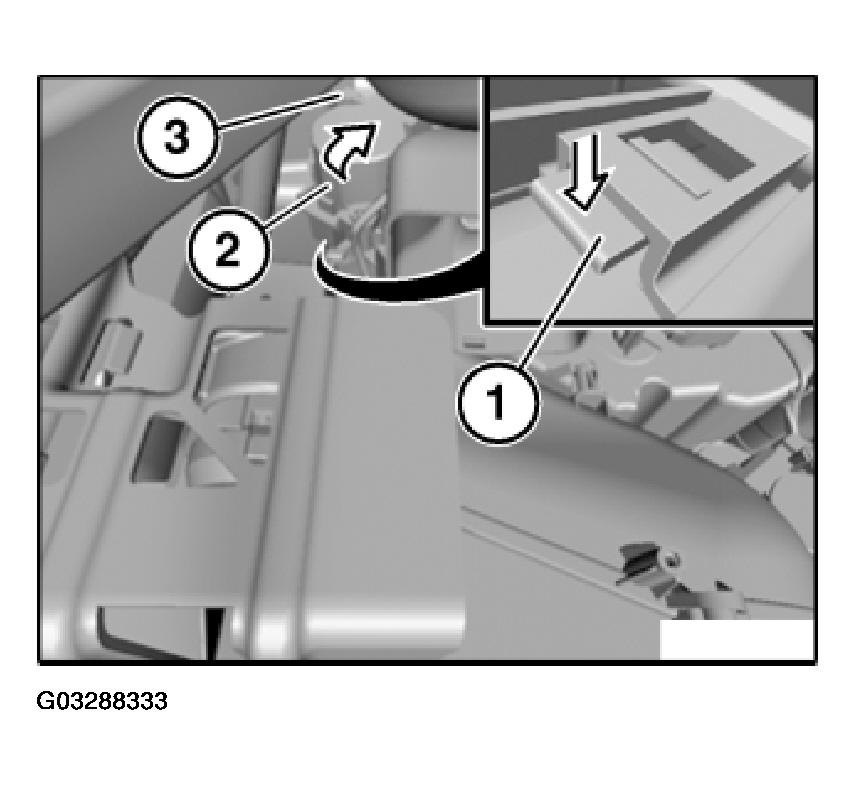

Press lock (1) and pull out servodrive for defrosting flap (2) in direction of arrow.

Unfasten plug connection (3) and disconnect.

Fig 1: Removing Trim Panel For Pedal Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Follow repair instruction "Installing servodrive", refer to 64 11 ... INSTALLING SERVODRIVE .

Servodrive for defrosting flap (2) must snap audibly into place.
