64 11 943 Replacing evaporator temperature sensor

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim panel for pedal assembly, refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Release screw (1).

Detach heating duct in rear compartment on left (2) in direction of arrow from air distributor in footwell (3).

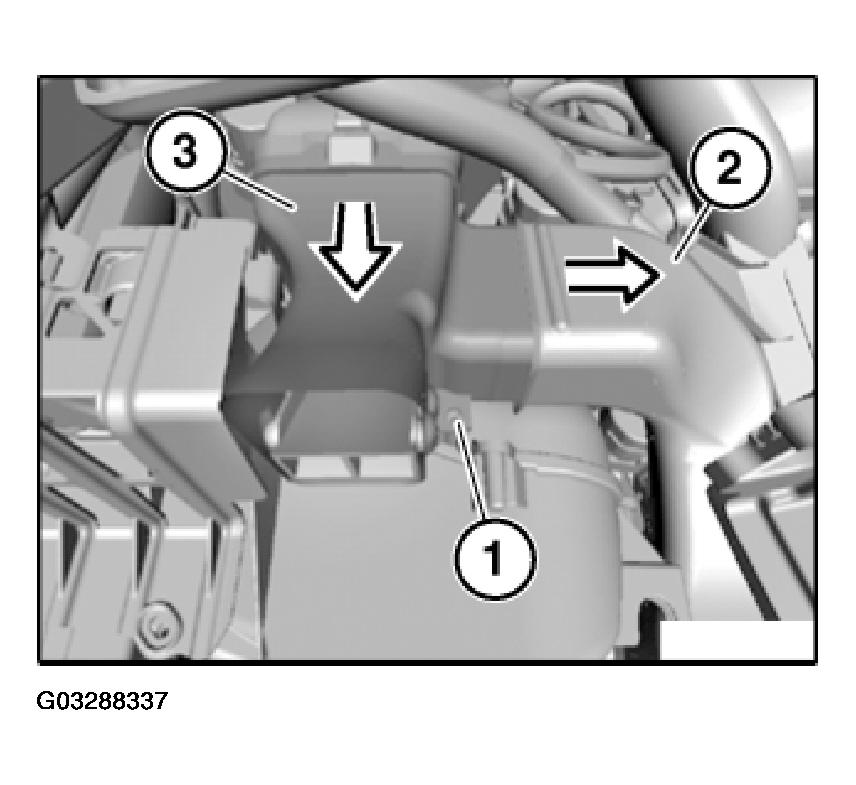

Fig 1: Detaching Heating Duct In Rear Compartment On Left

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out air distributor in footwell (3) in direction of arrow.

Installation:

Make sure heating duct in rear compartment on left (2) and air distributor in footwell (3) are correctly seated.

Unscrew bolt (1).

Pull out heating duct in rear compartment on left (2) in direction of arrow and feed out.

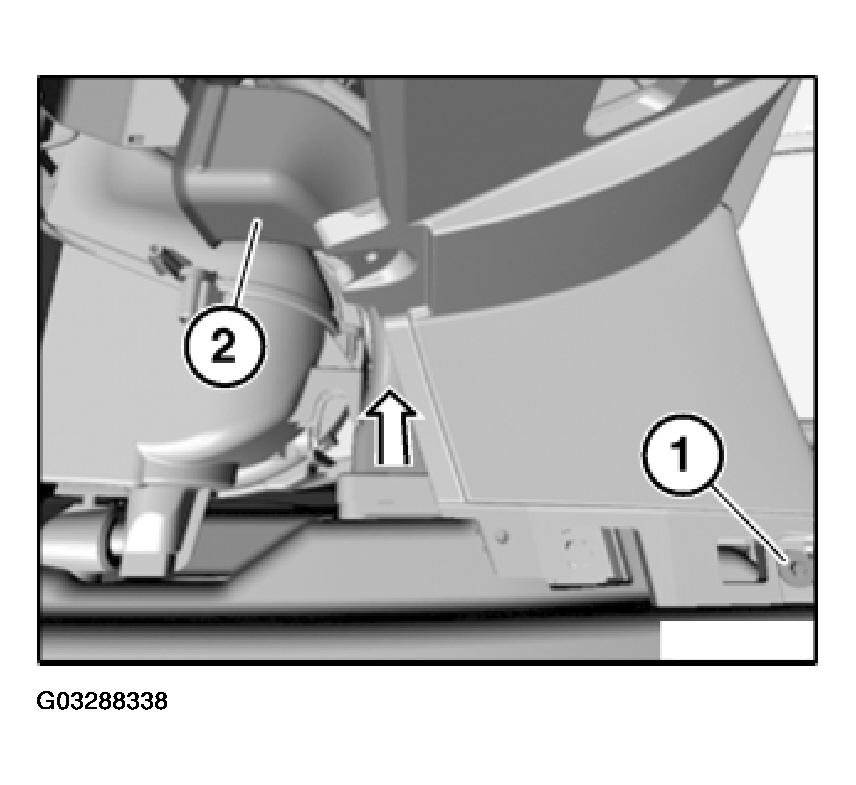

Fig 2: Pulling Out Heating Duct In Rear Compartment On Left

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure heating duct in rear compartment on left (2) is correctly seated.

Unfasten plug connection (1) and disconnect.

Pull out evaporator temperature sensor (2) in direction of arrow and feed out.

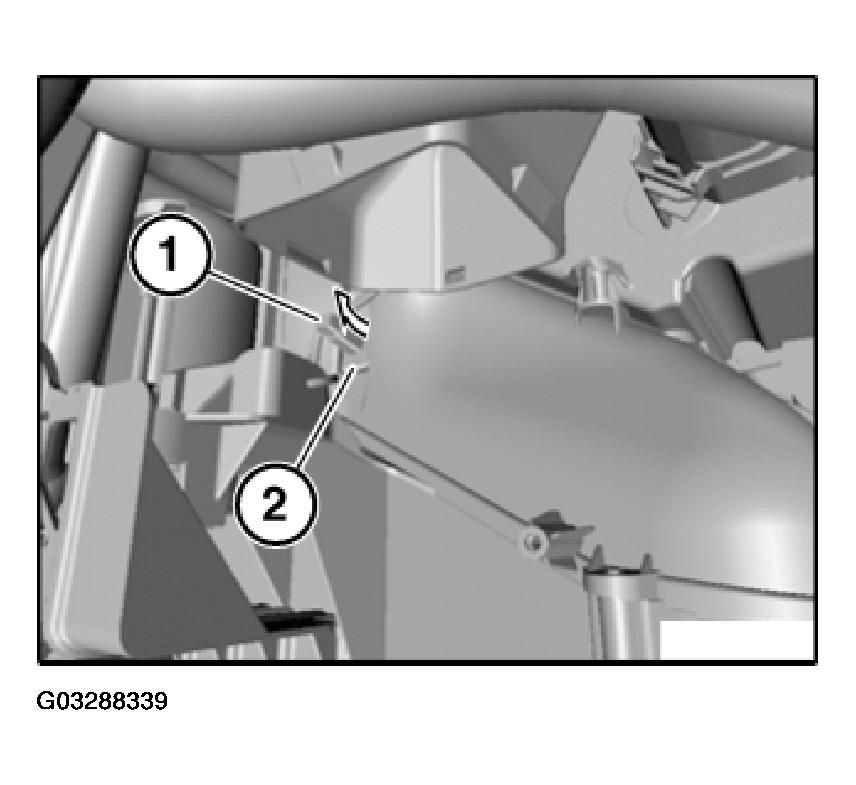

Fig 3: Pulling Out Evaporator Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure evaporator temperature sensor (2) is correctly seated.
