64 11 869 Replacing servodrive of stratification flap
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove right glovebox with housing, refer to 51 16 366 REMOVING AND INSTALLING RIGHT GLOVEBOX WITH HOUSING (WITHOUT ACTIVE KNEE PROTECTION) .
- Remove air distributor in footwell and air duct at side, refer to 64 11 943 REPLACING EVAPORATOR TEMPERATURE SENSOR .

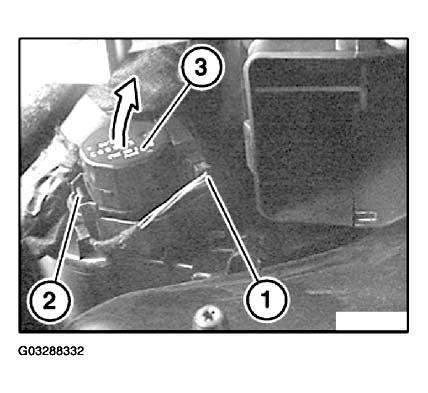

Unfasten plug connection (1) and disconnect.
Press lock (2) and pull out servodrive for stratification flap (3) in direction of arrow.
Installation:
Follow repair instruction "Installing servodrive", refer to 64 11 ... INSTALLING SERVODRIVE .
Servodrive for stratification flap (3) must snap audibly into place.
