64 11 803 Removing and installing/replacing servodrive for left fresh-air/reirculated-air flap
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim panel for pedal assembly, refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
- Remove air distributor in footwell and side heating duct/left rear seat area, refer to 64 11 943 REPLACING EVAPORATOR TEMPERATURE SENSOR .

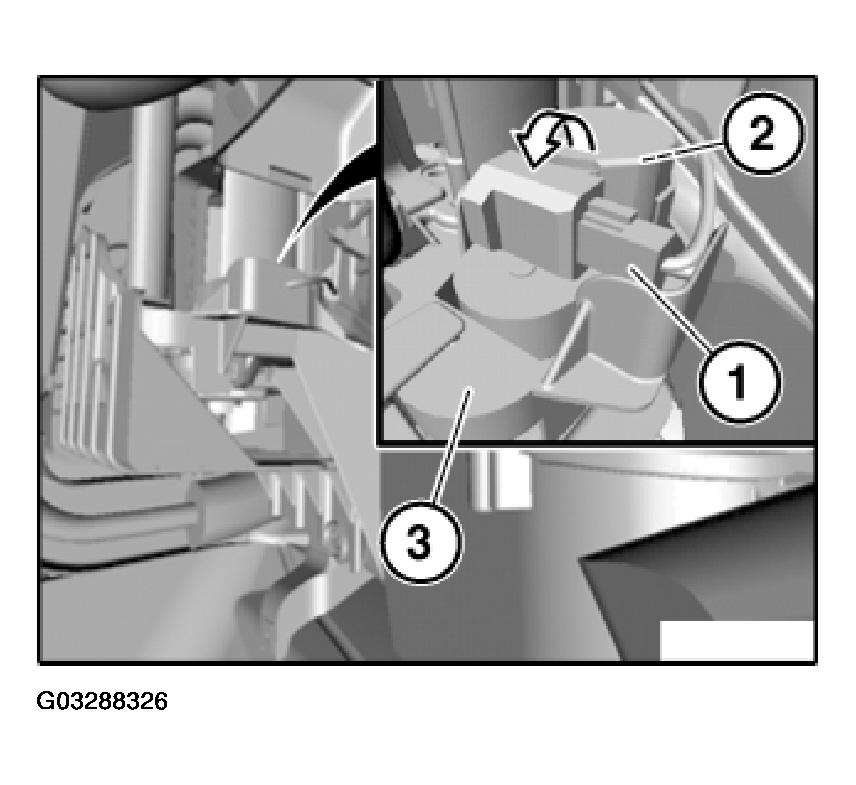

Press lock (2) and pull out servodrive for left fresh-air/ recirculated-air flap (3) in direction of arrow.
Unfasten plug connection (1) and disconnect.
Installation:
Follow repair instruction "Installing servodrive", refer to 64 11 ... INSTALLING SERVODRIVE .
Servodrive for left fresh-air/recirculated-air flap (3) must snap audibly into place.
