64 53 551 Removing and installing / replacing condenser for A/C system (N62)
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Avoid contact with refrigerant and refrigerant oil. Follow safety instructions for handling refrigerant R 134a, refer to 64 50 ... SAFETY INSTRUCTIONS FOR HANDLING REFRIGERANT R 134A . Follow safety instructions for handling refrigerant oil, refer to 64 50 ... SAFETY PRECAUTIONS WHEN HANDLING REFRIGERANT OIL (FOR REFRIGERANT R 134A) .
NOTE:
The time value given for this work operation does not include drawing off, evacuating and filling the A/C system!
- Drain off air conditioner, refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .
IMPORTANT:
Risk of damage! Restart engine only when A/C system has been correctly filled.
NOTE:
If A/C system is opened for more than 24 hours: Replacing drier insert for A/C system, refer to 64 53 518 REPLACING DESICCANT INSERT FOR A/C SYSTEM (CONDENSER REMOVED) .
Necessary preliminary tasks:
- Remove radiator cover

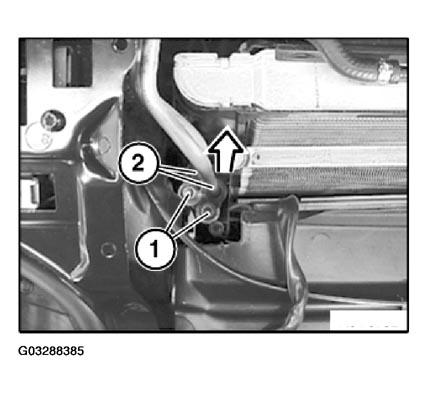

Release screws (1).
Tightening torque, refer to 64 53 1AZ in HEATING AND AIR CONDITIONING - TIGHTENING TORQUES .
Disconnect suction and pressure lines (2) and lay to one side.
Lift out condenser.
Installation:
Replace sealing rings and coat with suitable refrigerant oil.
