64 53 518 Replacing desiccant insert for A/C system (condenser removed)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with warnings relating to working on A/C systems, refer to 64 52 ... NOTES/INSTRUCTIONS ON WORKING ON AIR-CONDITIONING SYSTEMS .

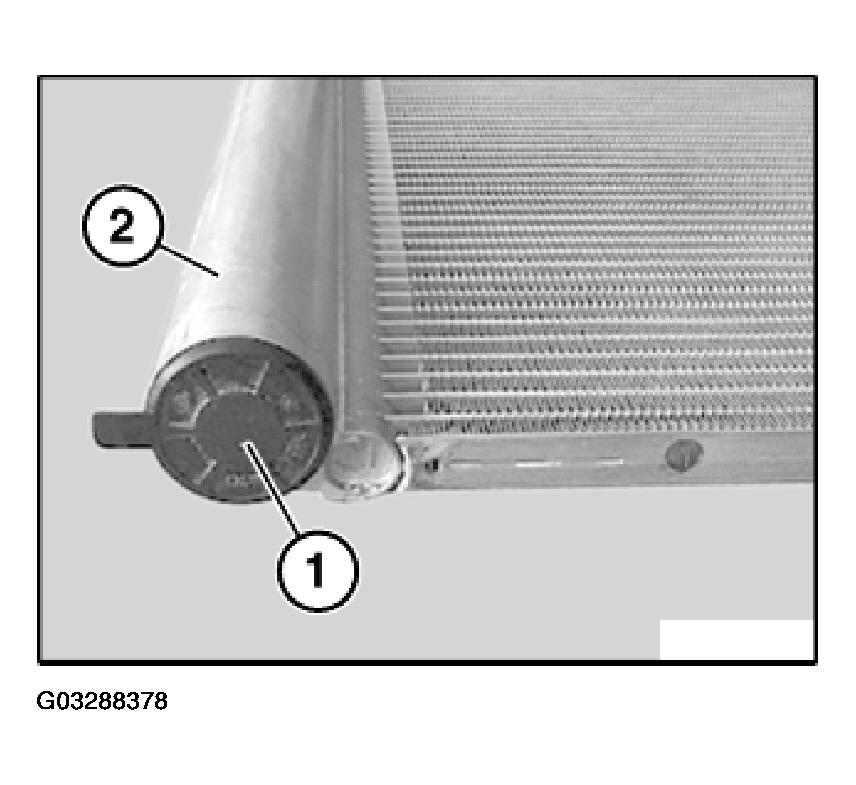

Remove protective cap (1) from condenser for A/C system (2).

Fig 1: Removing Protective Cap From Condenser For A/C System

G03288378

Courtesy of BMW OF NORTH AMERICA, INC.

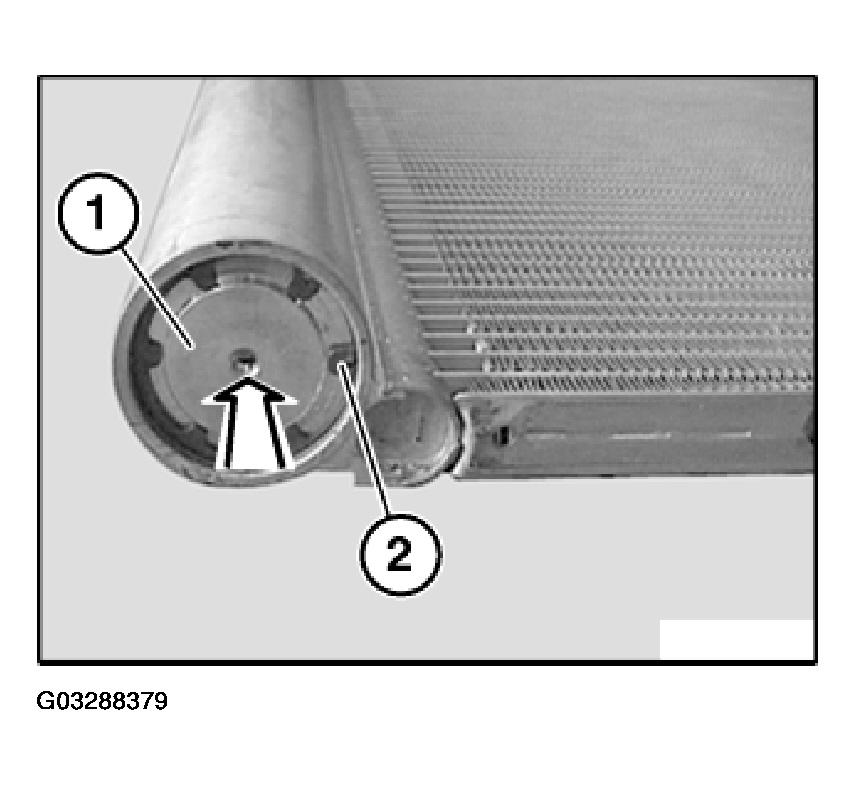

Press sealing cap (1) inwards and remove circlip (2).

Fig 2: Removing Circlip

G03288379

Courtesy of BMW OF NORTH AMERICA, INC.

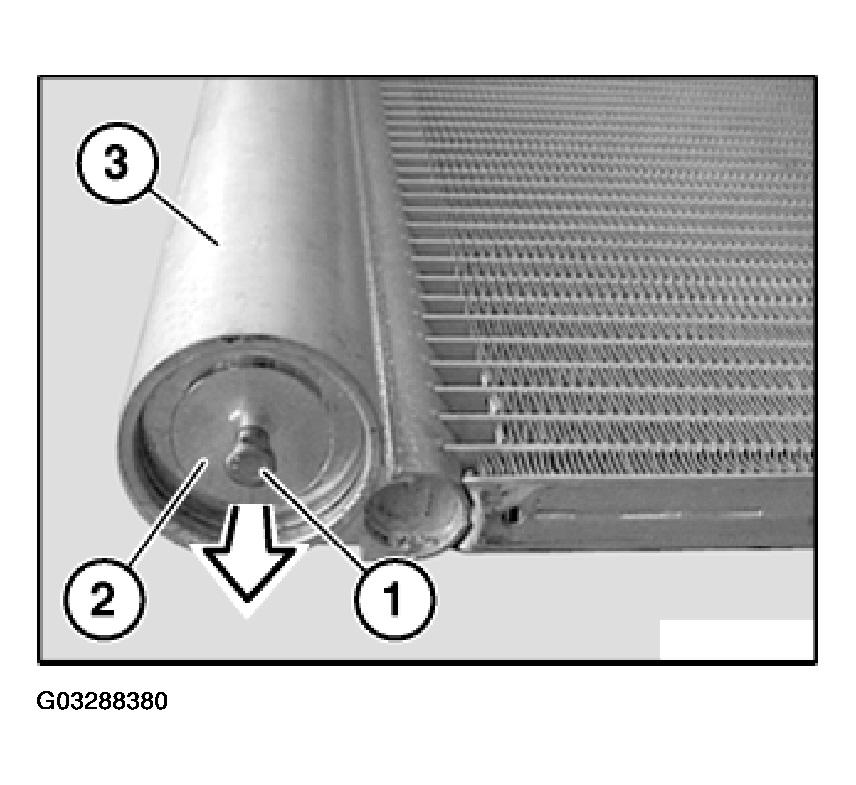

Remove protective cap (2) from condenser for A/C system (3) with aid of an inserted screw (1).

Fig 3: Removing Protective Cap From Condenser For A/C System

G03288380

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

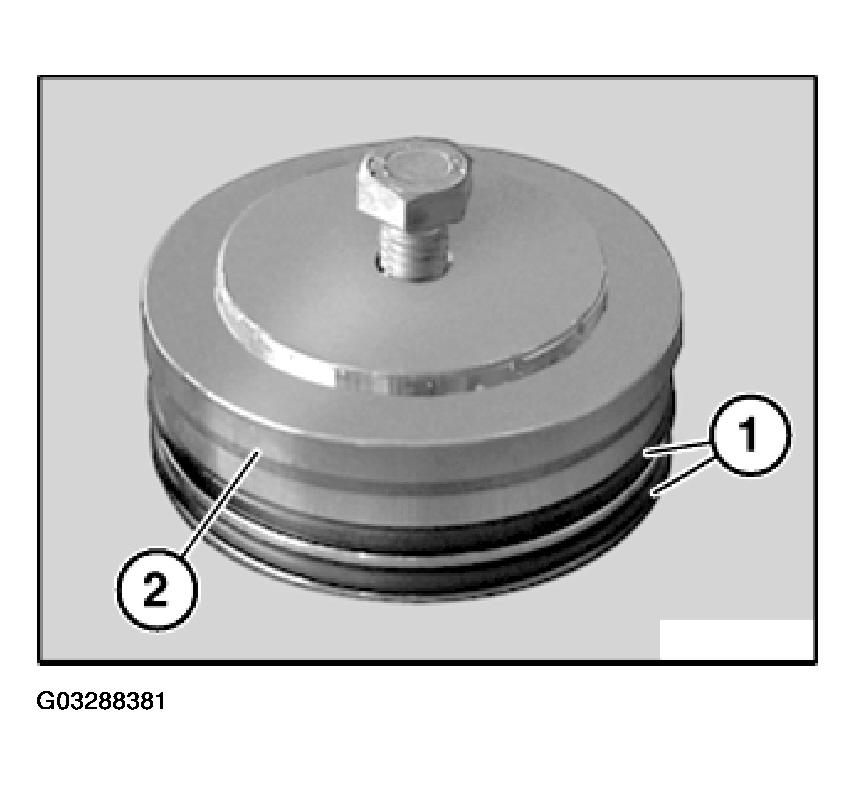

Replace sealing rings (1) of sealing cap (2) and coat with suitable refrigerant oil.

Fig 4: Installing Sealing Rings Of Sealing Cap And Coat With Suitable Refrigerant Oil

G03288381

Courtesy of BMW OF NORTH AMERICA, INC.

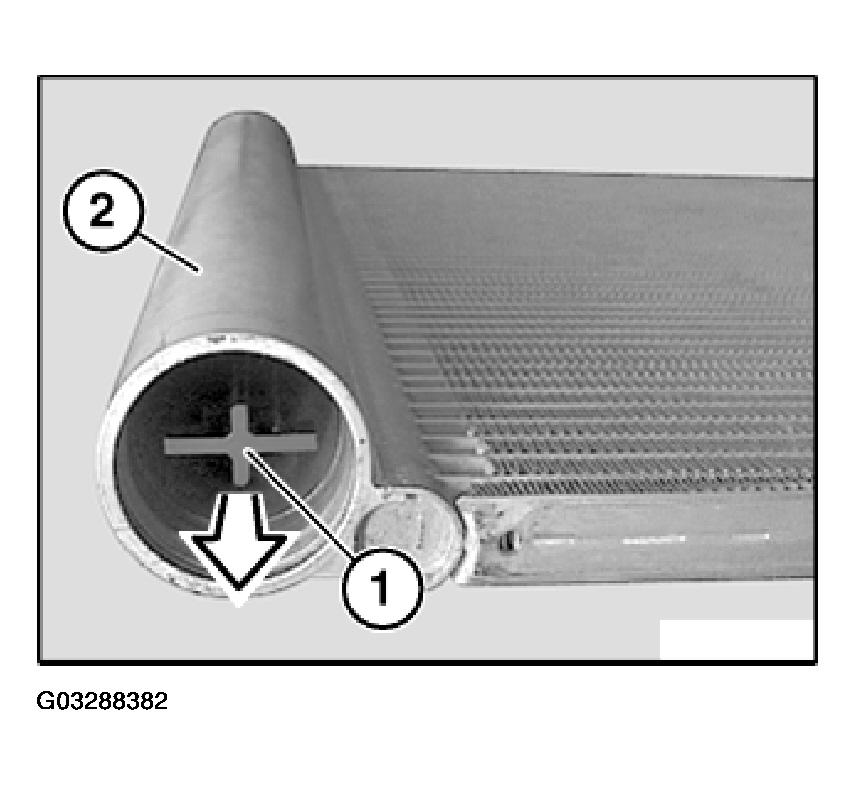

Remove desiccant insert for A/C system (1) in direction of arrow from condenser for A/C system (2).

Fig 5: Removing Desiccant Insert For A/C System

G03288382

Courtesy of BMW OF NORTH AMERICA, INC.
