65 20 090 Removing and installing/replacing antenna amplifier (diversity)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove rear right head restraint. Refer to 52 24 390 REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT REAR HEAD RESTRAINT .
- Remove panel for roof pillar at rear left. Refer to 51 43 255 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR LEFT OR RIGHT ROOF PILLAR (FRONT) .
- Remove auxiliary brake light cover. Refer to 63 25 000 REMOVING AND INSTALLING/REPLACING AUXILIARY BRAKE LIGHT COVER .
- If necessary, remove rear right handle. Refer to 51 16 450 REMOVING AND INSTALLING/REPLACING REAR LEFT/RIGHT GRAB HANDLE .
IMPORTANT:
Do not bend moulded roofliner.

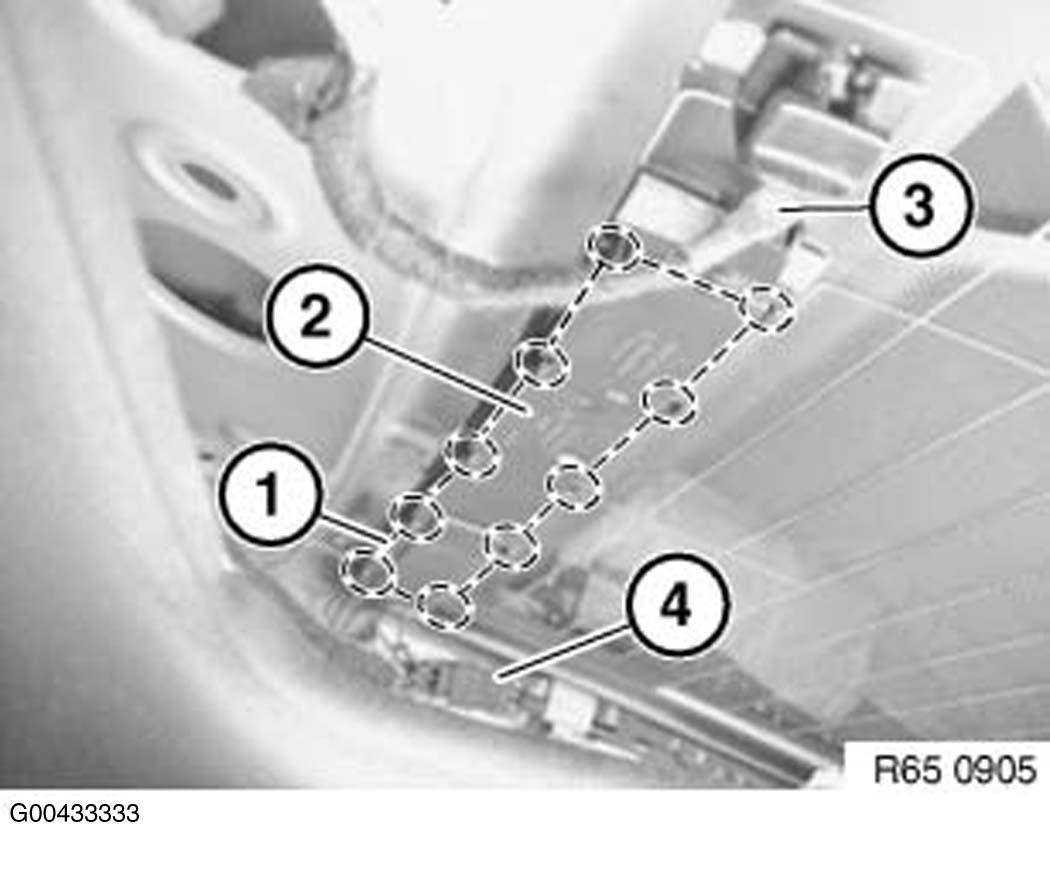

Unlock and disconnect catches (1) along line.
Disconnect plug connection (3, 4).
Feed out antenna amplifier (2).
Installation:
Make sure cover for auxiliary brake light (3) is correctly seated.
