52 24 390 Removing and installing or replacing left or right rear head restraint

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Move head restraint (1) upwards to maximum extent.

Press lock (2) and pull out head restraint.

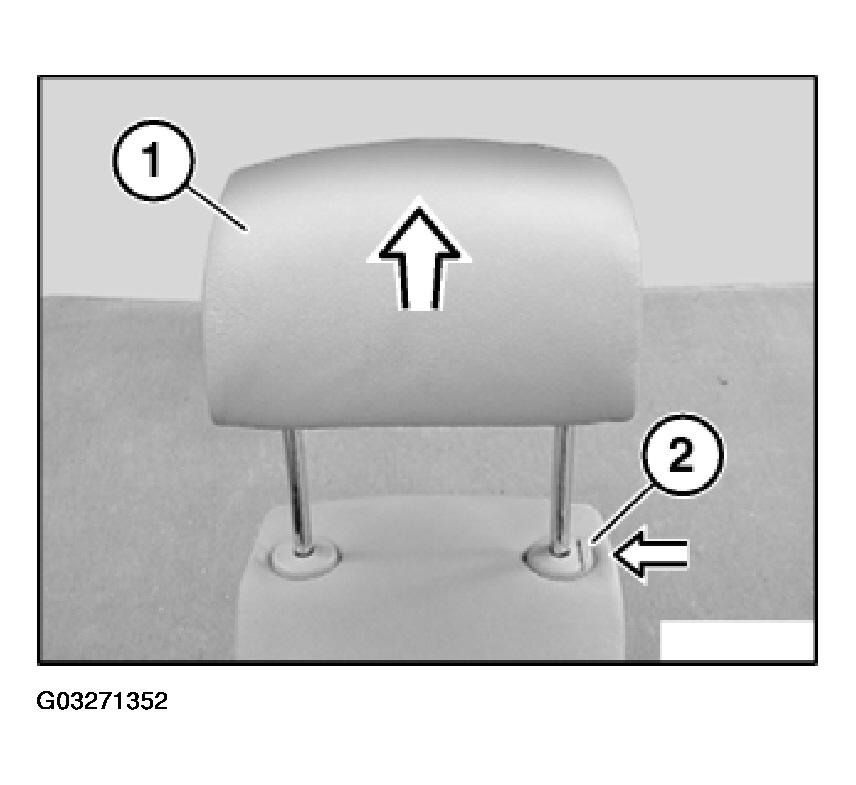

Fig 1: Locating Head Restraint Lock
G03271352Courtesy of BMW OF NORTH AMERICA, INC.
