22 11 001 Replacing right engine mount (N62)
WARNING: This page is about a different car, the 2010 BMW 650i, 2009 BMW 650i, 2008 BMW 650i, 2007 BMW 650i, and 2006 BMW 650i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Secure Engine In Installation Position , see 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N62, N62TU) .
- Remove both front wheels .
- Lower front axle support . See 31 11 506 LOWERING/RAISING FRONT AXLE CARRIER .
Observe safety instructions on raising the vehicle . See 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .

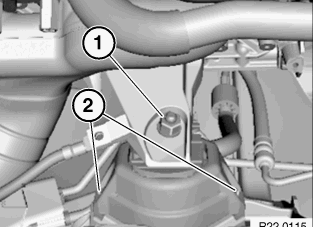

Release screws (2) and remove engine mount.
Tightening torque 22 11 1AZ . See 22 11 ENGINE SUSPENSION .
