51 24 165 Removing and installing/replacing side left or right buffer stops on rear lid (Version 2)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The operation is described on the left side; proceed in the same way for the right side.

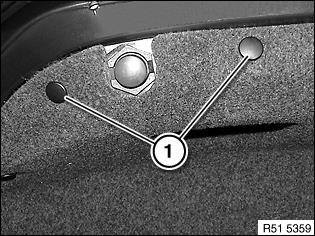

Release expander rivets (1) on trim panel for rear lid.

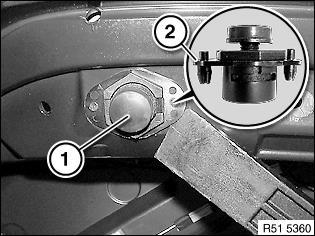

Lever out buffer stop (1) with special tool 00 9 317 at fastening points (2). Installation: Adjust both buffer stops (1) (work is described in Adjusting rear lid lock ).
