51 24 004 Adjusting rear lid lock (lower section of rear lid lock)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Rear lid must be correctly adjusted to fit before adjustment of rear lid lock.

If necessary Adjust rear lid .

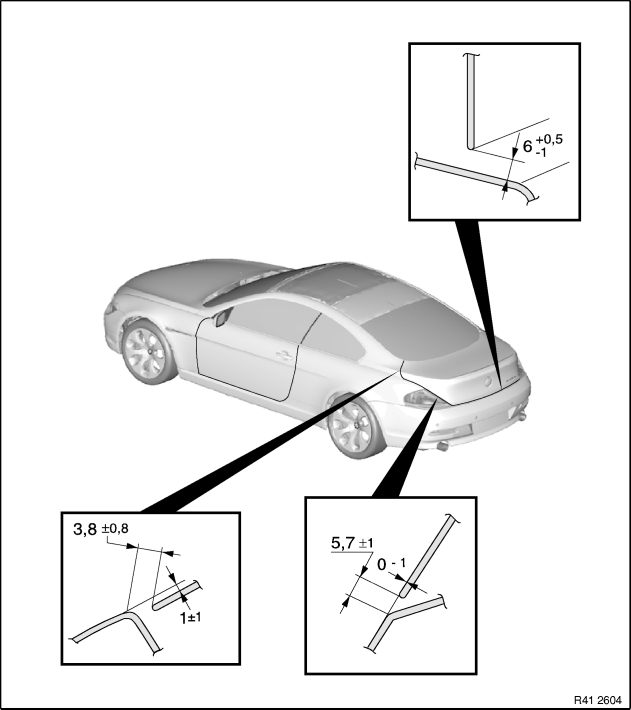

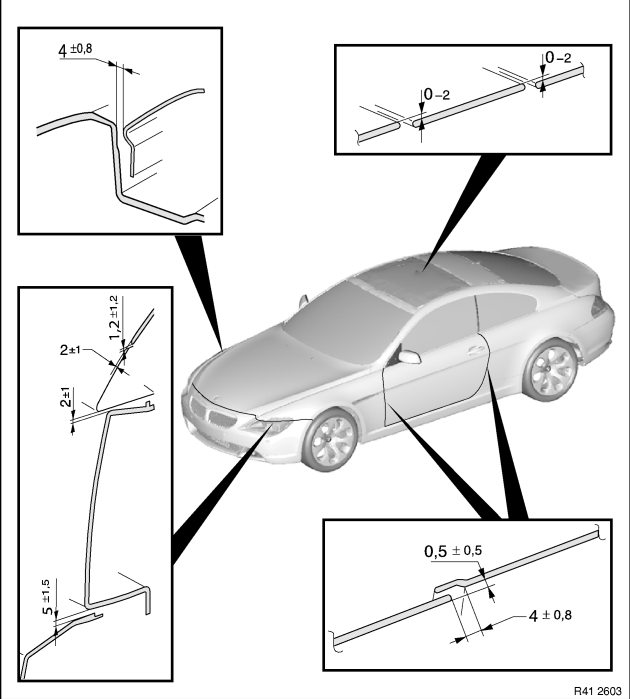

For ideal adjustment, refer to Figure-Figure. .

Screw in detent buffers for rear lid on left/right completely.

Fig 1: Locating Screw In Detent Buffers For Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Check fulcrum pads on lower section of rear lid lock for damage and replace if necessary.

Fig 2: Locating Fulcrum Pads On Lower Section Of Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Version with cover caps on rear apron trim:

If necessary, remove cover caps.

Slacken screws in lower section of rear lid lock until it is just able to move and centers itself.

The lower section of the rear lid lock must not scrape against the rear lid lock.

Fig 3: Locating Slacken Screws In Lower Section Of Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Adjusting lower section of rear lid lock:
Close trunk lid.
This enables the lower section of the rear lid lock to adjust itself correctly.

Open rear lid.

Tighten down screws on lower section of rear lid lock.

Check adjustment of rear lid and rear lid lock, repeating adjustment if necessary.

Fig 4: Locating Rear Lid Lock Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew detent buffer until closed rear lid abuts against left/right detent buffers.

IMPORTANT: The rear lid must not be higher than the side panels, otherwise there is preload on height adjustment!

Fig 5: Locating Detent Buffer Screws

Courtesy of BMW OF NORTH AMERICA, INC.
