51 23 265 Removing and installing/replacing left or right gas pressure spring for engine compartment lid (Version 2)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of injury and damage!
For the following tasks, you must take the appropriate measures to support the engine bonnet/hood.
As an alternative, you can enlist the help of a second person to hold the bonnet/hood.
For the following tasks, you must take the appropriate measures to support the engine bonnet/hood.
As an alternative, you can enlist the help of a second person to hold the bonnet/hood.

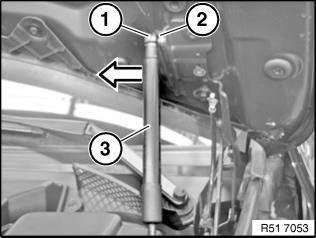

Raise engine compartment lid. Disassembling ball socket (1). Unclip gas spring strut (3) in direction of arrow from ball stud (2), top and bottom. Detach gas pressurized prop.
