51 11 157 Replacing front bumper trim
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front bumper trim

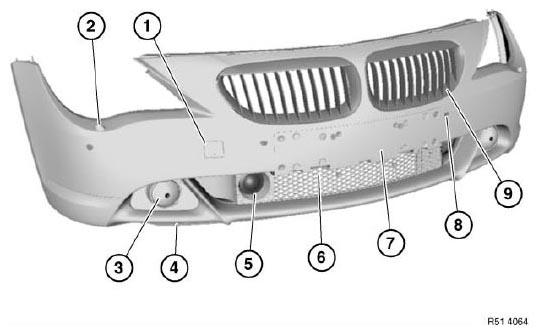

- Remove cover cap (1) for tow lug.
- Remove spray nozzles of headlight washer system (2)
- Remove front fog lamp (3) (not for M6). See FOG LIGHTS, AUXILIARY LIGHTS .
- Remove damping lip/spoiler (4) (not for M6)
- If necessary, remove trim for ACC (5) (not for M6). See 66 31 006 REMOVING AND INSTALLING (REPLACING) ACC SENSOR .
- Remove trim grille in bumper trim (6) .
- If necessary, remove license plate (7) .
- If necessary, remove baseplate for license plate
- If necessary, remove wiring harness and PDC ultrasonic sensor (8) . See 66 20 520 REMOVING AND INSTALLING/REPLACING AN ULTRASONIC TRANSDUCER AT FRONT (PARK DISTANCE CONTROL) .
- Remove middle front radiator grille (9) .
