24 14 002 Replacing shaft seal for selector shaft (GA6HP19Z)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

24 5 361
24 5 362
24 5 364
24 5 366

IMPORTANT: After completion of work, check transmission fluid level.
Use only the approved transmission fluid. See AUTOMATIC TRANSMISSION - OPERATING FLUIDS .
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Remove underbody protection . See 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION .

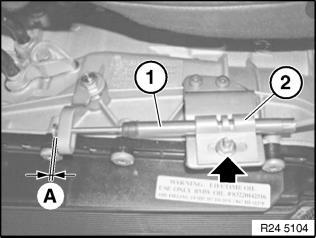

Unfasten nut. Remove cable (1). Installation: Adjusting cable:

Release nut
Adjust cable by means of holder (2)
Distance A = 1.5 mm

Fig 1: Adjust Cable By Means Of Holder (2)

G00497069

Courtesy of BMW OF NORTH AMERICA, INC.

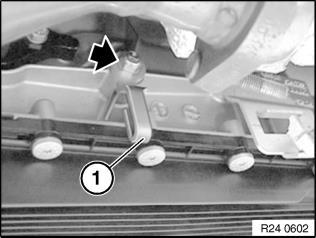

Unfasten nut. Take off holder (1). Tightening torque 24 51 1AZ.

Fig 2: Unfasten Nut And Take Off Holder (1)

G00497070

Courtesy of BMW OF NORTH AMERICA, INC.

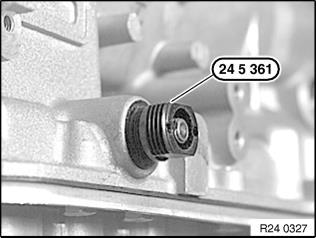

Screw in special tool 24 5 361 until it is firmly connected with shaft seal.

Fig 3: Screw In Special Tool 24 5 361 Until It Is Firmly Connected With Shaft Seal

G00497071

Courtesy of BMW OF NORTH AMERICA, INC.

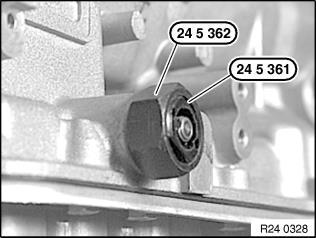

Screw special tool 24 5 362 onto special tool 24 5 361 and tighten down. This pulls the shaft seal out of the transmission housing.

Fig 4: Screw Special Tool 24 5 362 Onto Special Tool 24 5 361 And Tighten Down

G00497072

Courtesy of BMW OF NORTH AMERICA, INC.

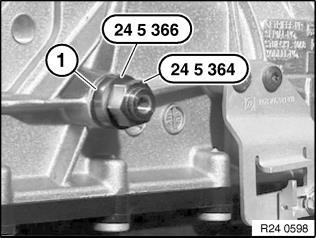

Oil sealing lip on shaft seal (1). Screw in shaft seal (1) with special tools 24 5 366 and 24 5 364 as far as it will go.

Fig 5: Screw In Shaft Seal (1) With Special Tools 24 5 366 And 24 5 364

G00497073

Courtesy of BMW OF NORTH AMERICA, INC.
