24 31 010 Replacing torque converter shaft seal (GA6HP26Z)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Necessary preliminary tasks:

IMPORTANT: After completion of work, check transmission oil level. See 00 11 500 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6HP26Z) .
Use only approved transmission oil. See AUTOMATIC TRANSMISSION - OPERATING FLUIDS .
Failure to comply with this instruction will result in serious damage to the transmission.

Secure transmission with special tool 24 0 200 to assembly stand 00 1 450.

Fig 1: Identifying Special Tool (24 0 200)

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 24 2 353 to drive shaft (1).

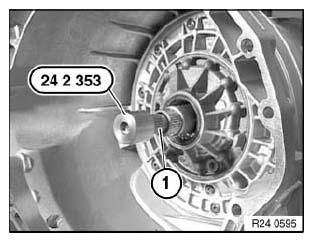

Fig 2: Identifying Special Tool (24 2 353)

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 24 2 351 until it is firmly connected with shaft seal.

Screw in special tool 24 2 352 to remove shaft seal.

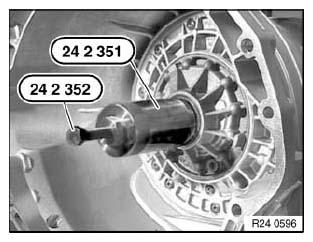

Fig 3: Identifying Special Tool (24 2 351) And (24 2 352)

Courtesy of BMW OF NORTH AMERICA, INC.

Oil sealing lip on shaft seal.

Drive in shaft seal (1) with special tool 24 2 360 as far as it will go.

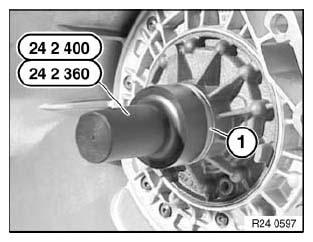

Fig 4: Identifying Special Tool (24 2 360)

Courtesy of BMW OF NORTH AMERICA, INC.
