61 61 270 Removing and installing complete wiper console

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COWL PANEL COVER .
Remove HEATER BULKHEAD .

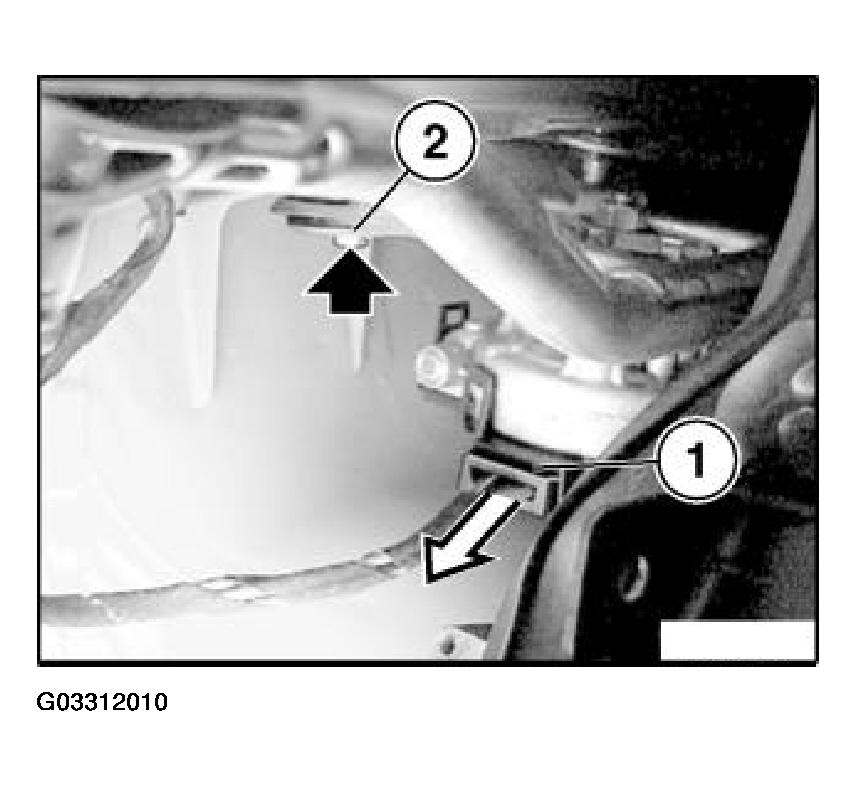

Unfasten plug connection (1) and disconnect.

Fig 1: Unfastening Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (2).

Installation:

tightening torque, 61 61 6AZ. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Installation:

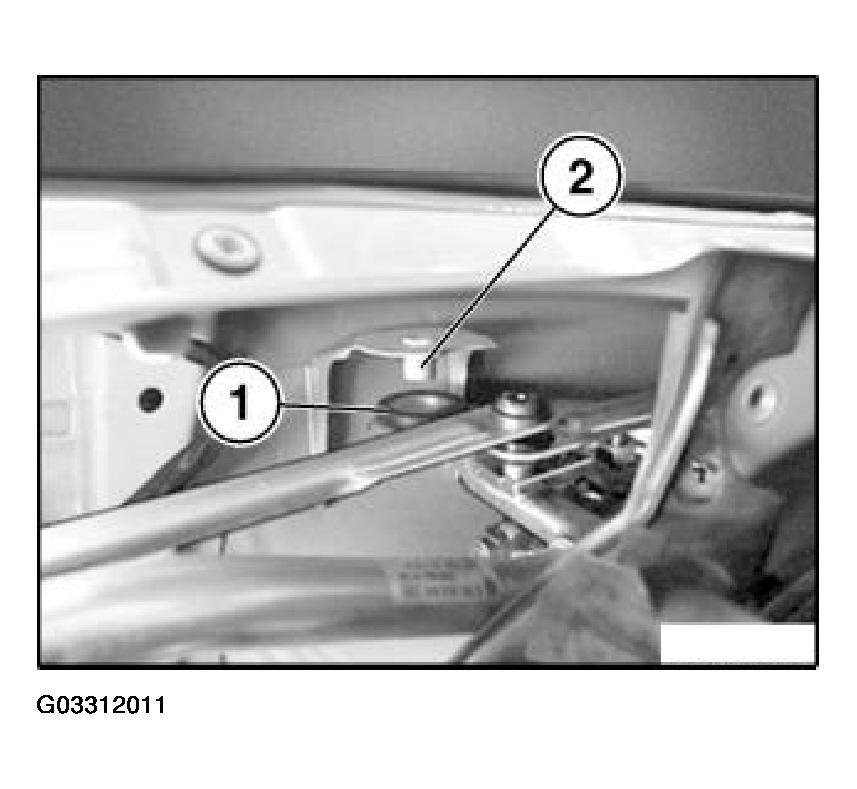

Fit rubber grommet (1) of wiper console on pin (2).

Fig 2: Fitting Rubber Grommet Of Wiper Console On Pin

Courtesy of BMW OF NORTH AMERICA, INC.

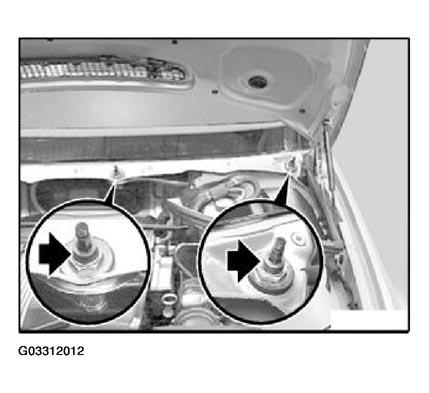

Release nuts and feed out complete wiper console through opening in heater bulkhead.

Fig 3: Removing Complete Wiper Console

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

tightening torque, 61 61 5AZ. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .
