61 62 060 Removing and installing/replacing rear window wiper motor

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove wiper arm for rear window. Refer to 61 62 030 REPLACING WIPER ARM FOR REAR WINDOW WIPER .
Remove panel for rear lid.

Unfasten plug connections (1) and disconnect.

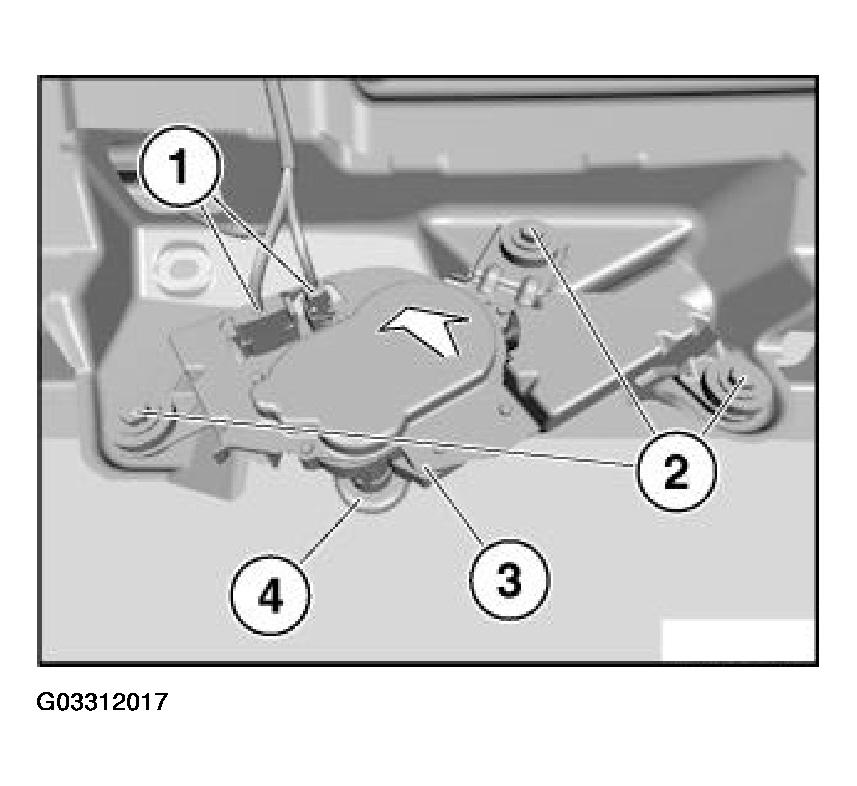

Fig 1: Removing Rear Wiper Motor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure rear window wiper motor (3) against falling out.

Release screws (2).

Installation:

tightening torque, 61 62 8AZ. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Remove rear window wiper motor (3) in direction of arrow.

Installation:

Replace grommet (4) if necessary.
