61 62 030 Replacing Wiper Arm For Rear Window Wiper

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

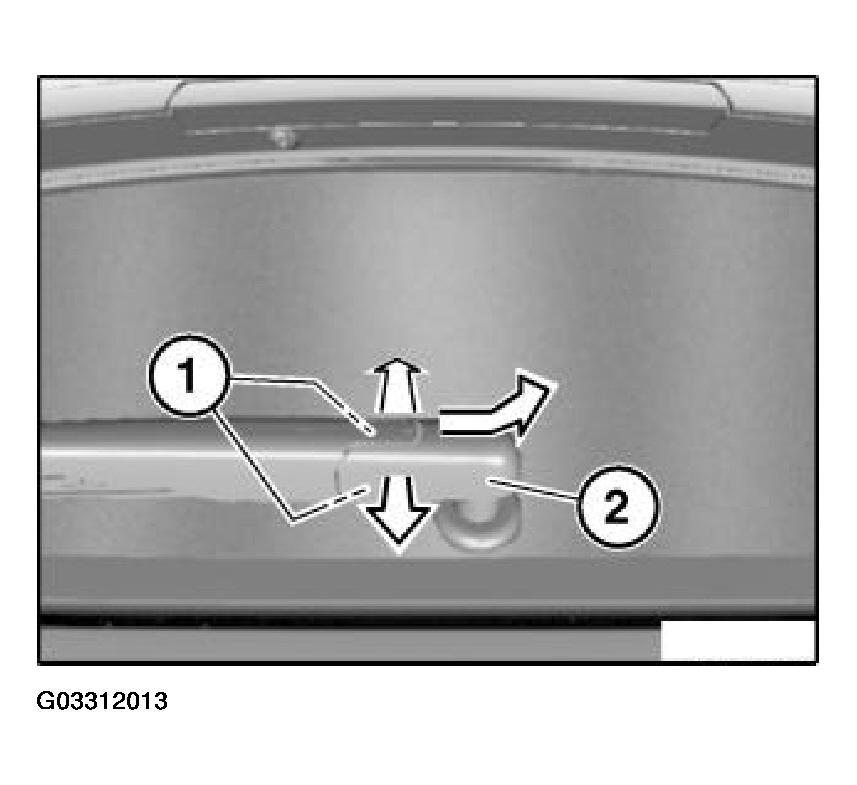

Pull internal locks (2) in direction of arrow and remove cover cap (1) as illustrated.

Fig 1: Pulling Internal Locks

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

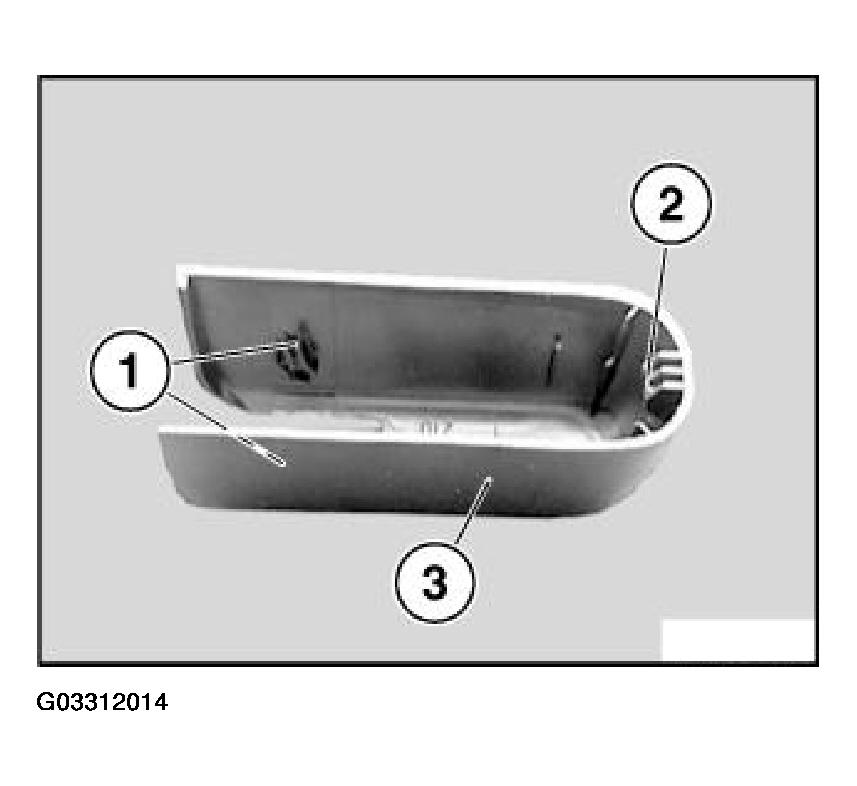

Locks (1) and (2) of cover cap (3) must not be damaged.

Fig 2: Inspecting Locks And Of Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

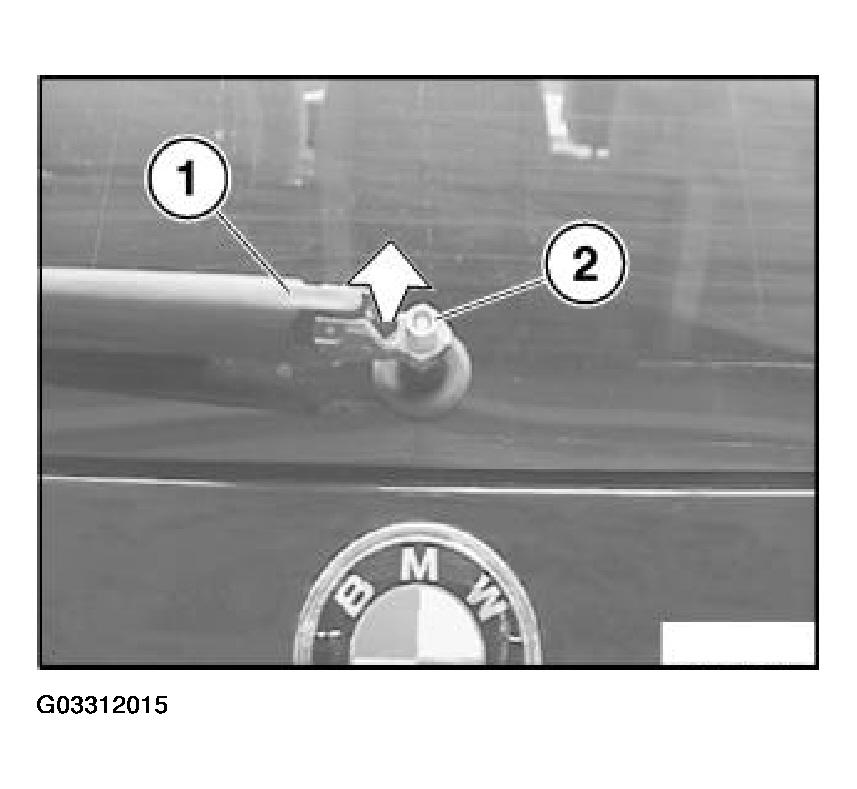

Set wiper arm (1) upwards.

Fig 3: Removing Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (2) and remove wiper arm (1) in direction of arrow.

Installation:

tightening torque, 61 62 5AZ. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Installation:

Rear window wiper motor must be in wiper rest position.

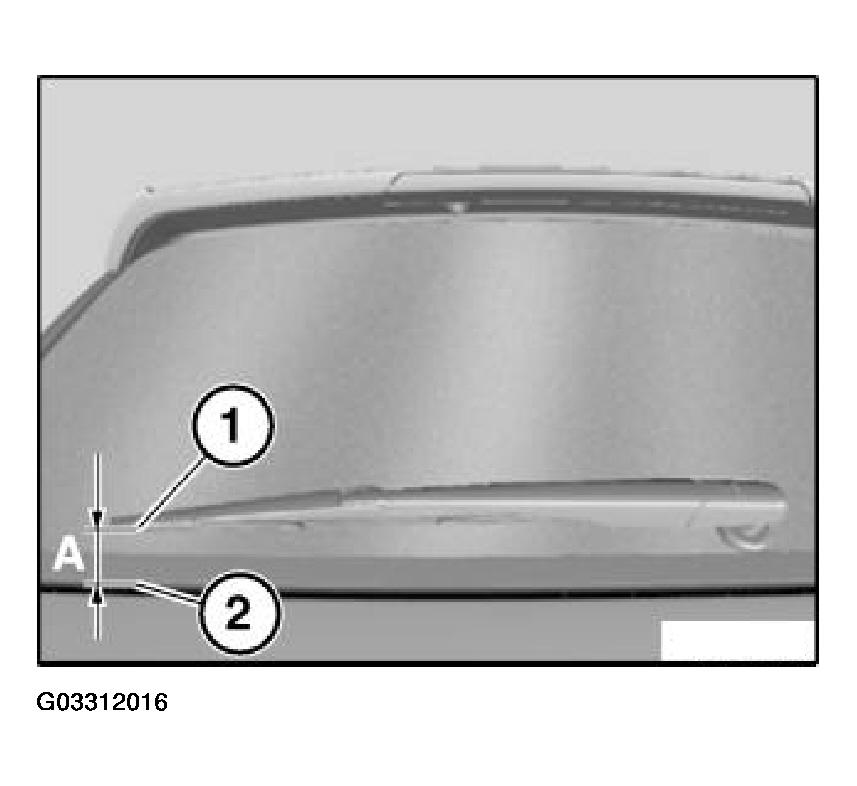

Adjust measurement (A) between wiper blade (1) and rear window edge (2).

Measurement (A): 29 mm.

Fig 4: Identifying Adjustment Measurement

Courtesy of BMW OF NORTH AMERICA, INC.
