22 11 110 Replacing left engine support arm (M54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Secure engine in installation position. Refer to SECURING ENGINE WITH SPECIAL TOOL IN INSTALLATION POSITION (M54) .
Remove reinforcement plate.
Remove oil dipstick guide tube. Refer to 11 43 000 REMOVING AND INSTALLING/REPLACING OIL DIPSTICK (M54/56) .

Release nut (1) and screws (2).

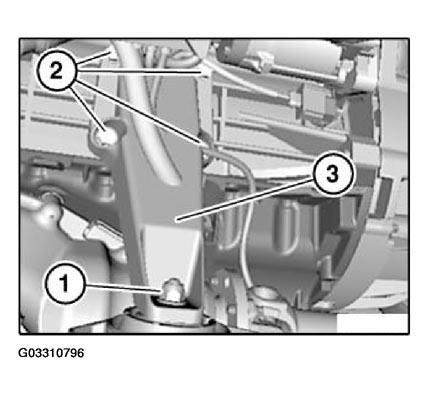

Fig 1: Removing Left Engine Support Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Remove engine support arm (3).

Tightening torque 22 11 2AZ/3AZ. Refer to ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .
