Securing engine with special tool in installation position (M54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 0 200
00 0 201
00 0 202
00 0 203
00 0 204
11 0 208
11 0 020

Necessary preliminary tasks:

Remove lower section of microfilter housing.
Remove cover for cowl panel.
Remove air cleaner housing.
Secure engine hood in service position. Refer to 51 00... SERVICE POSITION OF ENGINE HOOD .

Assemble special tool 00 0 200 with special tools 00 0 201 / 00 0 202 / 00 0 203 / 00 0 204 / 00 0 208 and fit.

Fig 1: Assembling Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

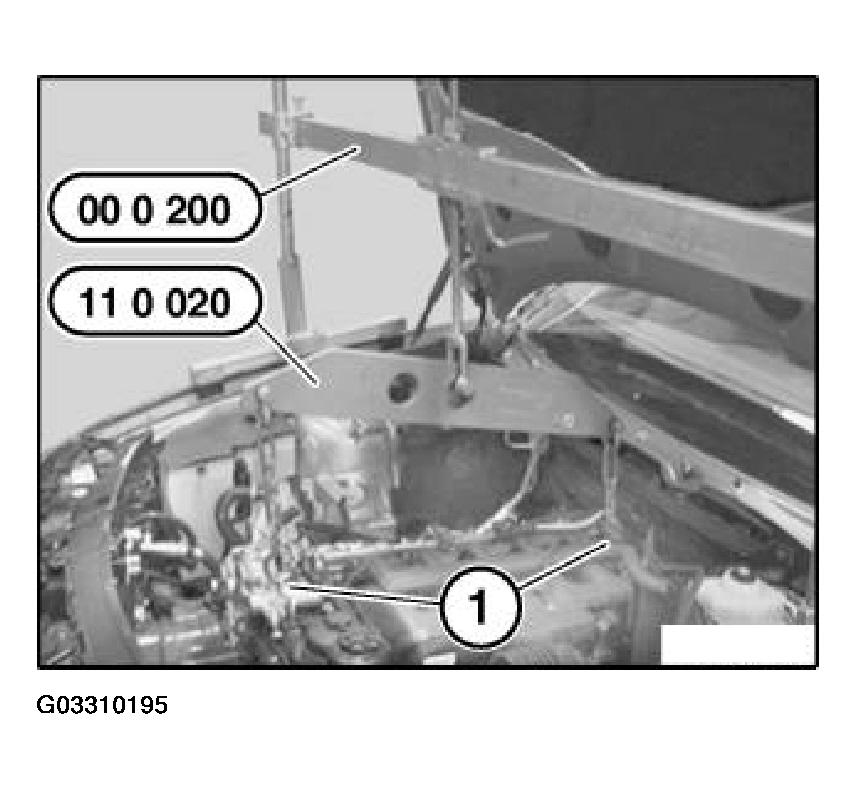

Secure special tool 11 0 020 to the designated suspension eyes at front and rear only.

IMPORTANT: Risk of damage to fuel line and engine wiring harness.

NOTE: The supports of special tool 00 0 208 must rest on the bolt connection of both side walls .
Risk of damage .

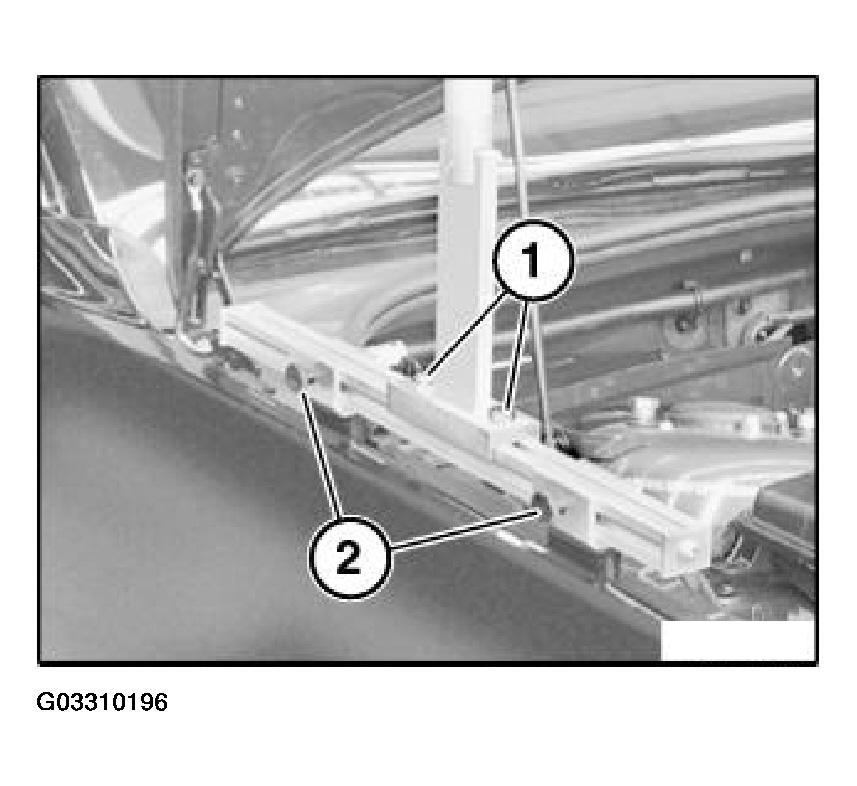

Tighten the screws (1 and 2).

Fig 2: Tightening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release engine mounts at top left and right.

Fig 3: Raising Engine

Courtesy of BMW OF NORTH AMERICA, INC.

Raise engine with special tool 00 0 200 approx. 10 mm

max. 30 mm - risk of damage. .
