22 11 001 Replacing right engine mount (M54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove reinforcement plate.
Release engine mounts on left and right from above. Tightening torque 22 11 1AZ/2AZ. Refer to ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .
Raise engine approx. 30 mm.
Operation is described in Securing engine in installation position. Refer to SECURING ENGINE WITH SPECIAL TOOL IN INSTALLATION POSITION (M54) .

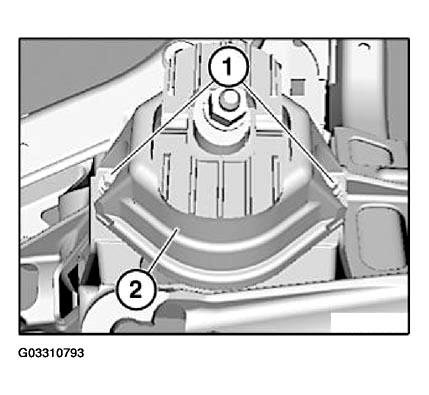

Release screws (1) and remove engine mount.

Fig 1: Removing Engine Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 22 11 1AZ. Refer to ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .

Installation:

Ensure correct position of heat shield.

Installation:

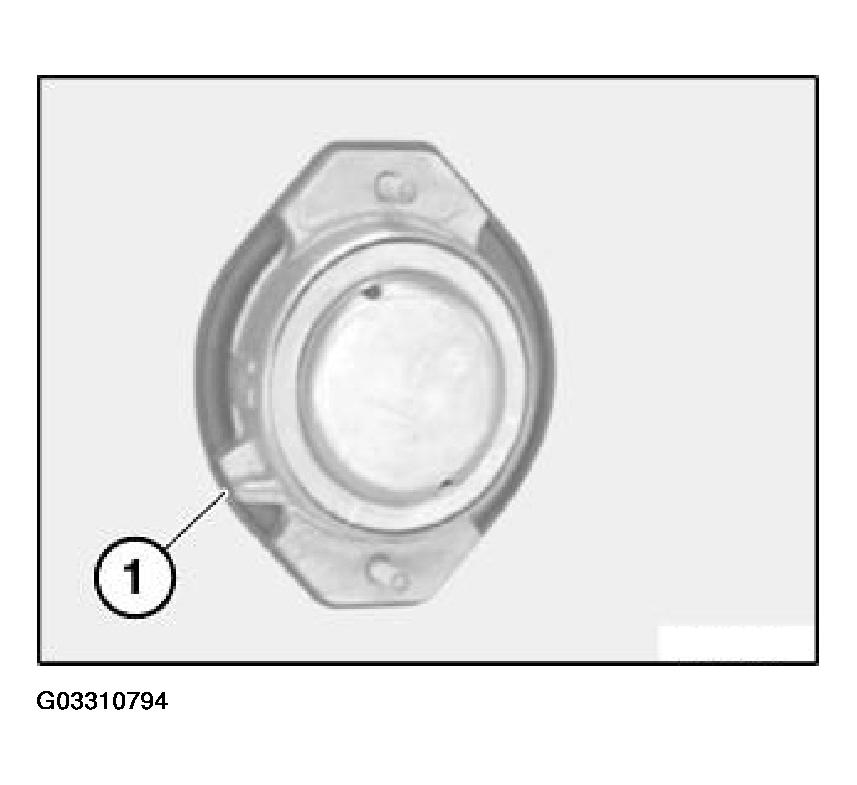

Lug (1) of engine mount must point to middle of vehicle.

Fig 2: Identifying Lug Of Engine Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Engine mount designations:

Right engine mount: Even component number

Left engine mount: Odd component number
