17 11 000 Removing and installing radiator (M54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

Necessary preliminary tasks:

Follow instructions for WORKING ON COOLING SYSTEM .
Remove intake duct
Remove fan cowl, refer to 17 11 031 Replacing fan cowl (M62/M54)
Draining coolant, refer to 17 00 005 DRAINING OFF AND TOPPING UP COOLANT (M54)
Unlock coolant hoses and detach
If fitted: remove heat exchanger for automatic transmission, refer to 17 22 010 REMOVING AND INSTALLING/REPLACING HEAT EXCHANGER FOR AUTOMATIC TRANSMISSION

Release screw.

Fig 1: Slackening Holder

Courtesy of BMW OF NORTH AMERICA, INC.

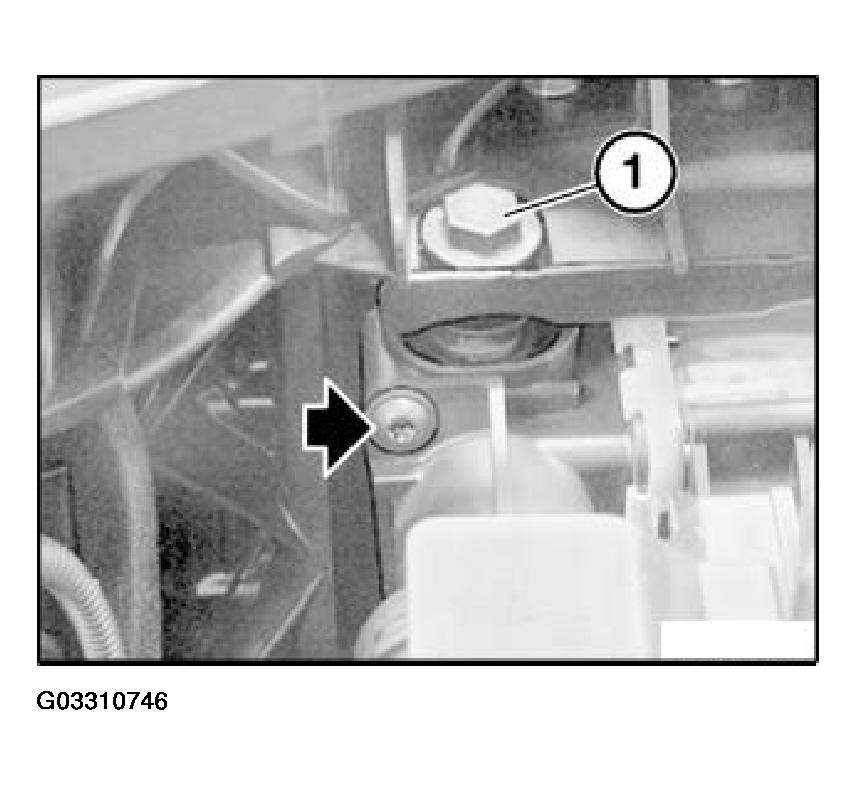

Slacken holder (1).

Tightening torque 17 11 10AZ .

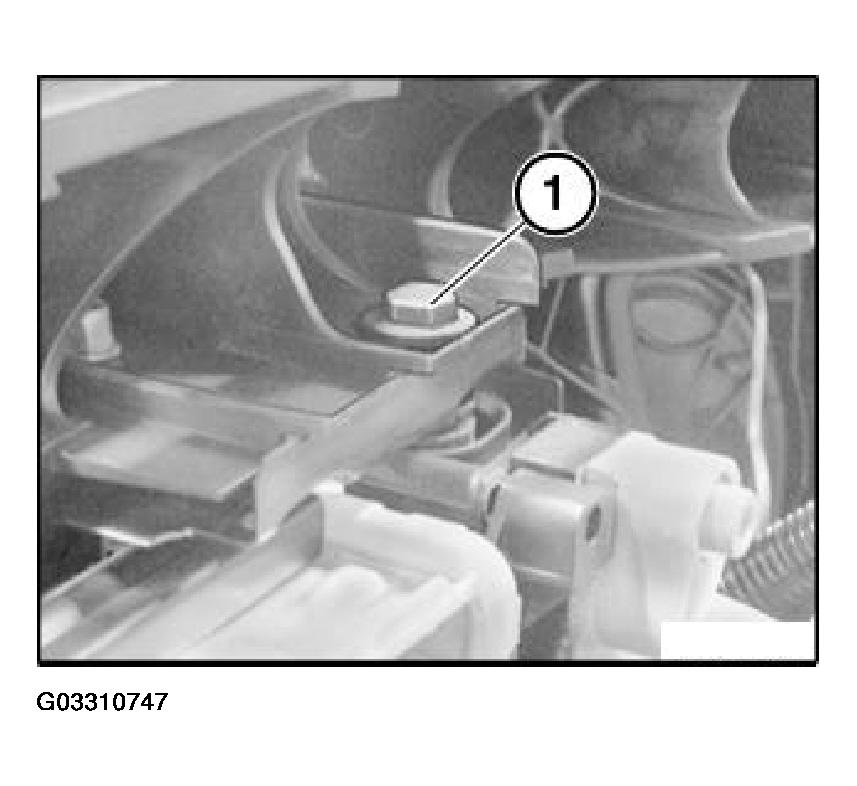

Slacken holder (1).

Fig 2: Slackening Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 17 11 10AZ .

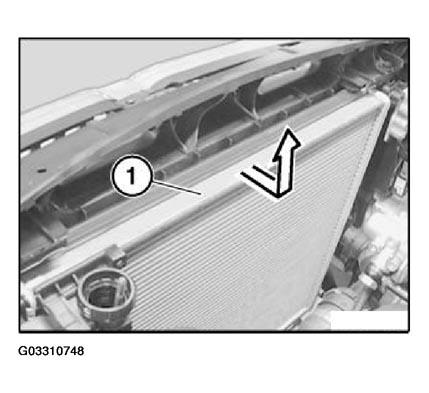

Remove radiator (1) in direction of arrow.

Fig 3: Removing Radiator

Courtesy of BMW OF NORTH AMERICA, INC.
