17 11 031 Replacing fan cowl (M62/M54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

M54 Only:

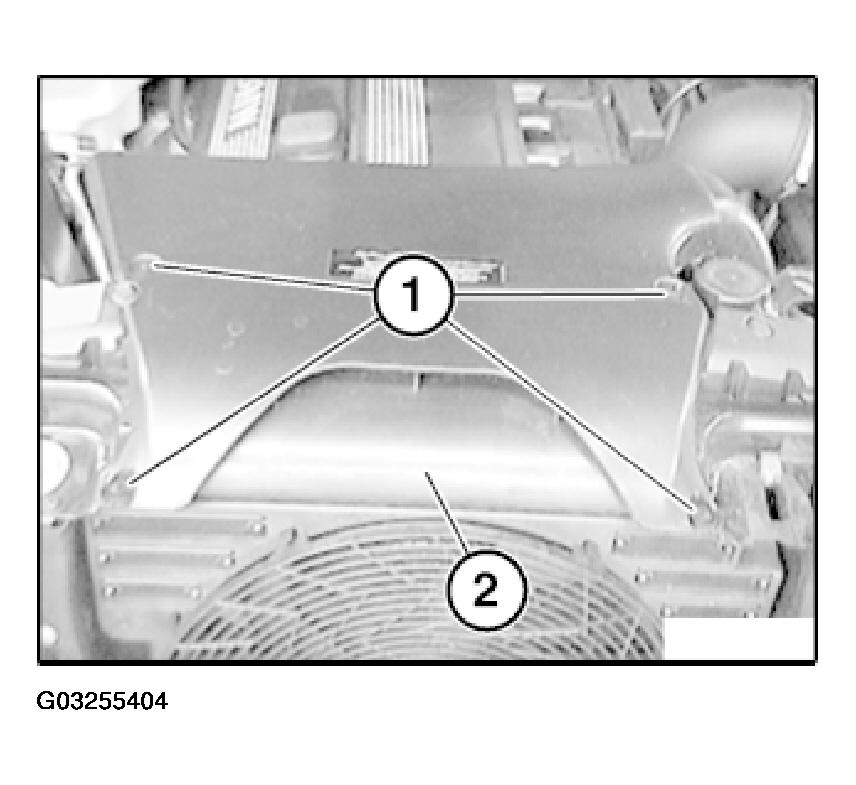

Lever out expansion rivets (1).

Remove intake hood (2).

Fig 1: Removing Expansion Rivets And Intake Hood

G03255404

Courtesy of BMW OF NORTH AMERICA, INC.

M62, M54:

Remove fan impeller with fan clutch. Refer to 11 52 020 REMOVING AND INSTALLING/REPLACING FAN CLUTCH (S52/S54/M52/M52TU/M54/M56) .

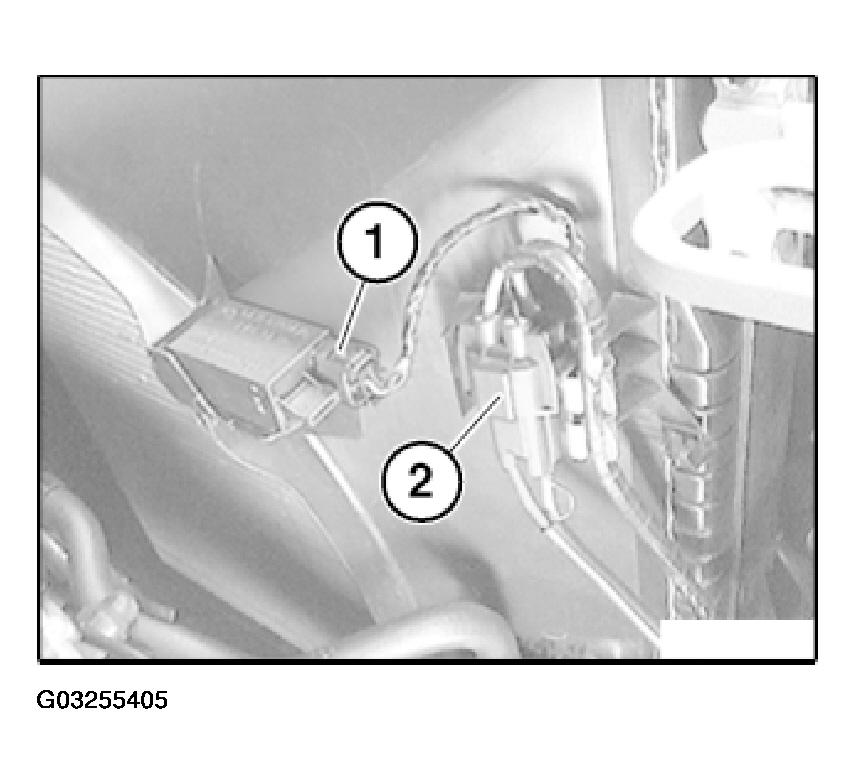

Detach plug (1) from AUC sensor.

Unlock plug connection (2) and unclip cable.

Fig 2: Detaching Plug From AUC Sensor And Plug Connection

G03255405

Courtesy of BMW OF NORTH AMERICA, INC.

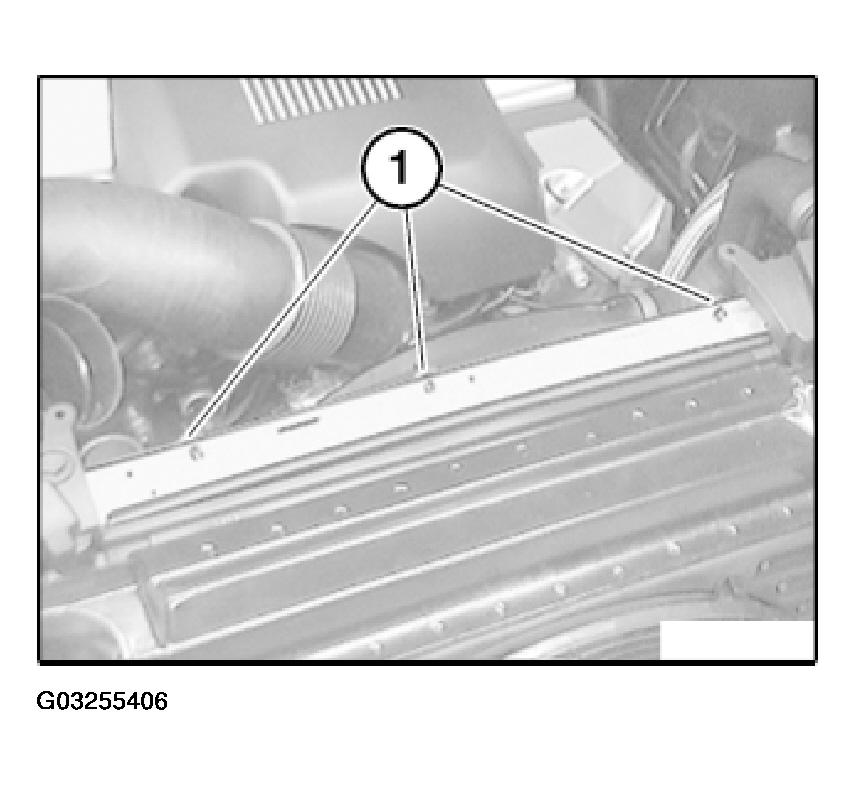

Lever out expansion rivets (1).

Fig 3: Removing Expansion Rivets

G03255406

Courtesy of BMW OF NORTH AMERICA, INC.

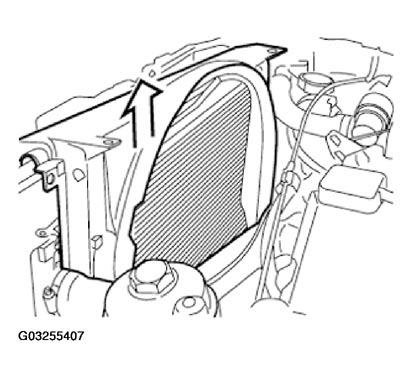

Remove fan cowl towards top.

Fig 4: Removing Fan Cowl

G03255407

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

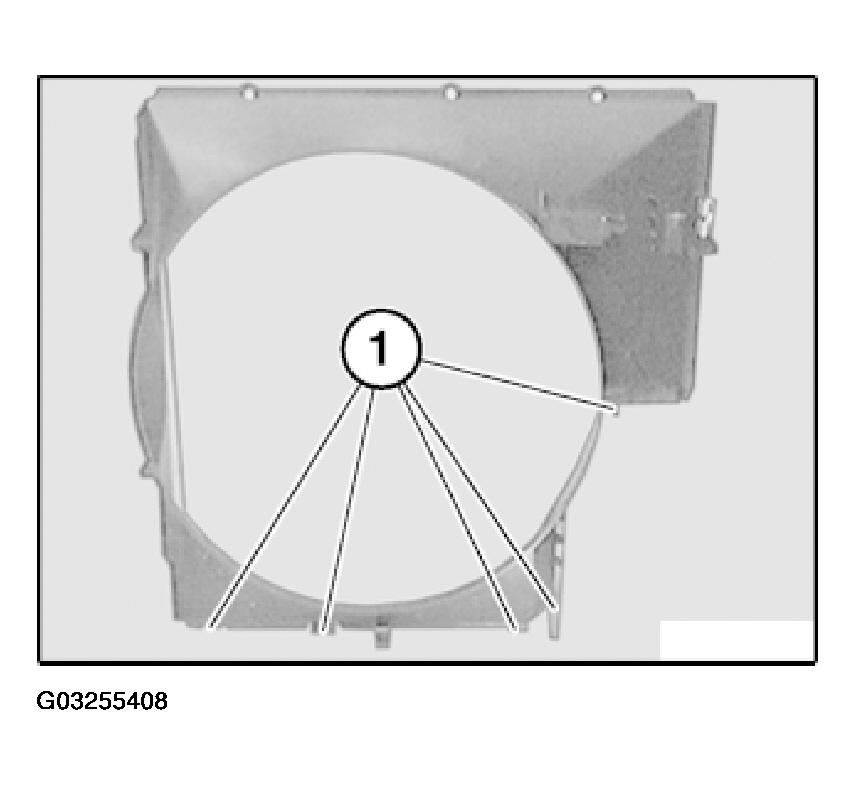

Attach lugs (1) to holders on radiator.

Fig 5: Attaching Lugs To Holders On Radiator

G03255408

Courtesy of BMW OF NORTH AMERICA, INC.
