11 22 500 Removing and installing/replacing flywheel (M54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 180
11 9 260
11 9 265

Necessary preliminary tasks:

Remove exhaust system. Refer to 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (M54) .
Remove transmission. Refer to REMOVAL & INSTALLATION - X3 (GS6-37BZ) or REMOVAL & INSTALLATION (A5S 360R/390R) .
Remove clutch (manual transmissions only). Refer to CLUTCH .

NOTE: Automatic transmissions only:

Secure flywheel with transmission screw (1) and special tools 11 9 260 and 11 9 265. Unfasten flywheel screws.

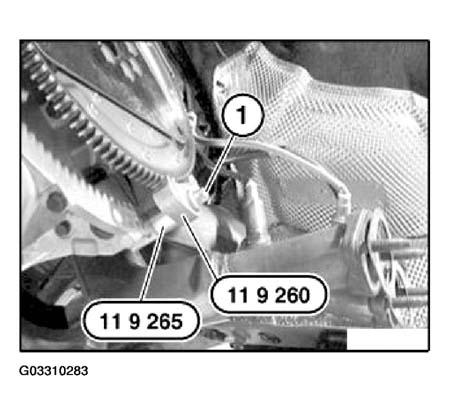

Fig 1: Unfastening Flywheel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque: 11 22 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

NOTE: Manual transmissions only:

Secure flywheel with transmission screw (1) and special tools 11 9 260 and 11 9 265. Release flywheel screws with special tool 11 4 180.

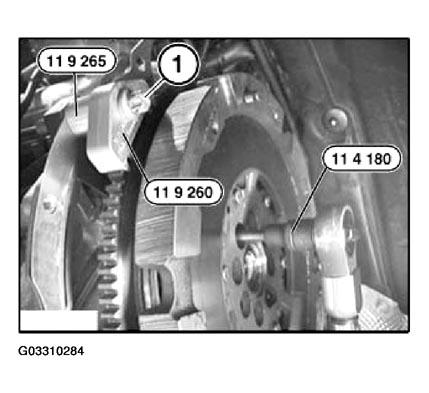

Fig 2: Releasing Flywheel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque: 11 22 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

Installation:

Check dowel sleeves for damage and firm seating.

Assemble engine.
