52 30 303 Removing and installing/replacing actuating mechanism for rear seat backrest

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove BACKREST COVER .

Unclip trim (1) and feed out from release lever (2).

Installation:

Retaining lugs must not be damaged.

If necessary, replace faulty trim (1).

Fig 1: Identifying Trim And Release Lever

Courtesy of BMW OF NORTH AMERICA, INC.

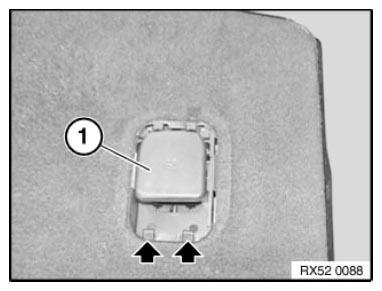

Press in detent lugs and remove release unit (1).

Fig 2: Locating Release Unit Detent Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

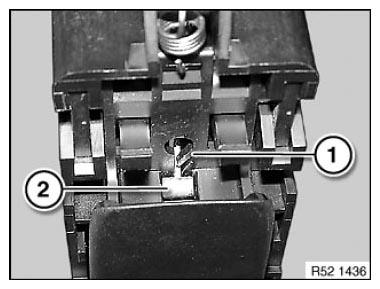

Disengage Bowden cable sleeve (1) from actuating unit (2).

Fig 3: Disengaging Bowden Cable Sleeve From Actuating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

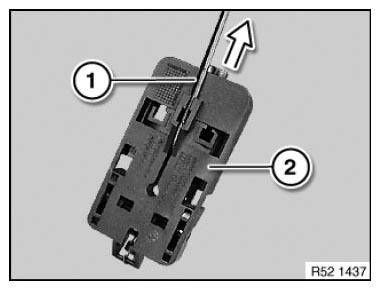

Carefully press retaining lug (1) back with screwdriver and feed Bowden cable nipple (2) out of actuating unit.

Fig 4: Identifying Retaining Lug And Bowden Cable Nipple

Courtesy of BMW OF NORTH AMERICA, INC.
