52 30 413 Removing and installing/replacing backrest cover for left or right rear seat

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary tasks

Remove rear panel
Remove HEAD RESTRAINT GUIDE .

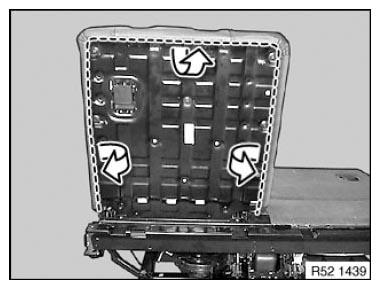

Disengage welt in marked area from backrest frame.

Fig 1: Disengaging Welt In Marked Area From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Move backrest back.

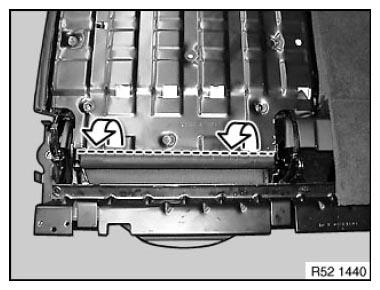

Lever out welt in marked area from backrest frame.

Remove backrest cover with padding.

Fig 2: Removing Backrest Cover With Padding

Courtesy of BMW OF NORTH AMERICA, INC.

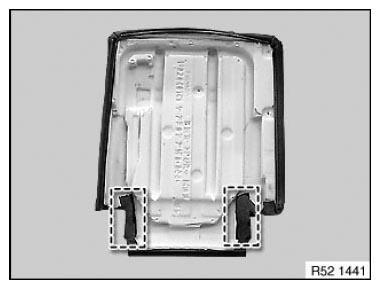

Open Velcro-type fastener in marked area.

Fig 3: Identifying Velcro-Type Fastener Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and padding:

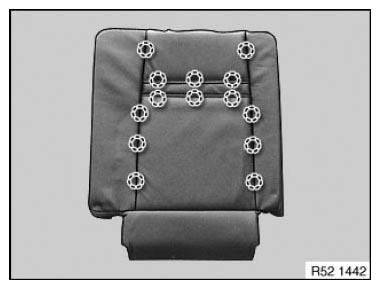

Release all retainers in marked area
Remove cover from padding
Remove all remnants of retainers from cover and padding

Fig 4: Identifying Cover And Padding Retainers
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

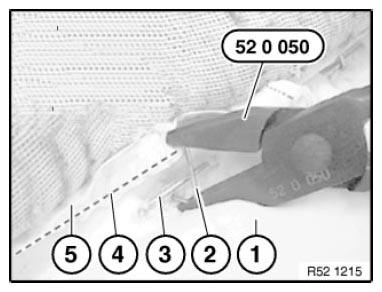

Insert new retainer (2) with special tool 52 0 050 and bend closed.

Padding
Retainer
Trim wire in padding
Trim wire in seat cover
Backrest cover

Fig 5: Inserting Retainer With Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

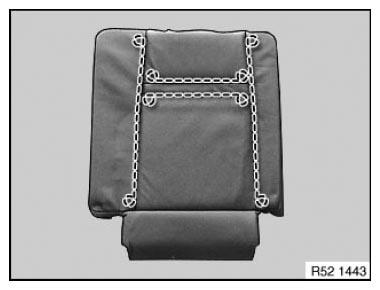

Pull all trim wires out of backrest cover
If necessary, cut pockets for trim wires in new backrest cover
Push trim wires into backrest cover pockets

Fig 6: Identifying Backrest Cover Pockets Trim Wires
Courtesy of BMW OF NORTH AMERICA, INC.
