52 30 251 Replacing Bowden cable for left or right rear seat backrest
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Disengage BOWDEN CABLE NIPPLE FROM ACTUATING UNIT .

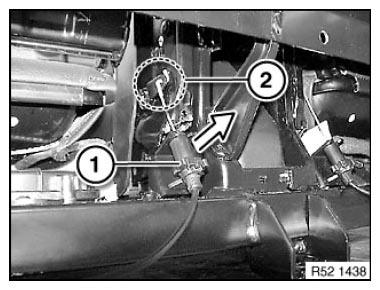

Unclip Bowden cable (1) from backrest frame.
Unhook Bowden cable nipple (2).
Feed out Bowden cable from backrest frame.
