63 99 201 Replacing halogen bulb for left or right front fog lamp
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow instructions for handling light bulbs (exterior lights
, see 63 99... Instructions for replacing light bulbs (interior lights) ).
Necessary preliminary tasks:
- Remove trim grille in bumper trim (side) , see 51 11 185 REMOVING AND INSTALLING/REPLACING GRILLE (SIDE) IN BUMPER TRIM .

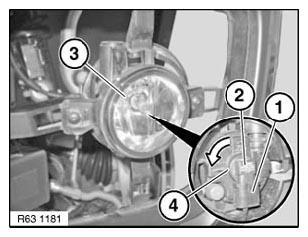

Disconnect plug connection (1).
Turn halogen bulb for fog lamp (2) in direction of arrow and remove from fog lamp (3).
Installation:
Note type of bulb , see Fog lights, auxiliary lights .
Make sure sealing ring (4) is correctly seated on halogen fog lamp bulb (2).
Make sure halogen fog lamp bulb (2) is correctly engaged on fog lamp (3).
