51 11 185 Removing and installing/replacing grille (side) in bumper trim
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 323 , see 00 9 323 CLEANING WEDGE (SCRAPER) .

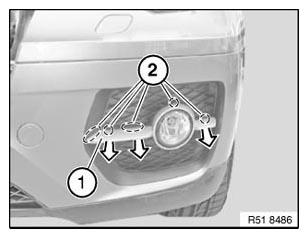

Fold trim bar (1) down and pull in direction of arrow from catches (2).
Installation:
Catches (2) must not be damaged.

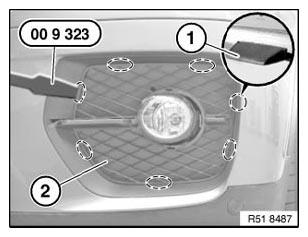

Unclip catches (1) with special tool 00 9 323 and remove trim grille (2) towards front.
Installation:
Catches (1) must not be damaged
IMPORTANT:

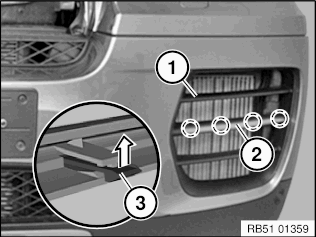

The ornamental grille (1) shown is welded to the bumper panel and cannot be removed from the outside.
The trim bar (2) can be removed from the outside.
Dismantling the trim bar:
Reach behind ornamental grille (1) and push latch mechanisms (3) up.
Feed out trim bar (2) forwards.
