63 17 070 Removing and installing/replacing left fog light (LCI from 04/2012)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

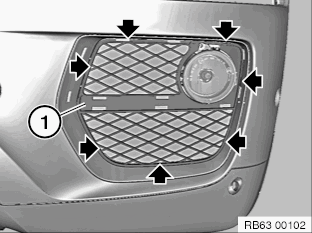

Unclip catches at points marked by arrow with special tool 00 9 323. Pull cover (1) towards front. Installation note: Latch mechanisms must not be damaged

Fig 1: Unclip Catches At Points Marked By Arrow With Special Tool 00 9 323

Courtesy of BMW OF NORTH AMERICA, INC.

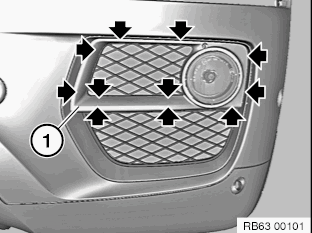

Unclip catches at points marked by arrow with special tool 00 9 323. Pull ornamental grille (1) towards front. Installation note: Latch mechanisms must not be damaged

Fig 2: Unclip Catches At Points Marked By Arrow With Special Tool 00 9 323

Courtesy of BMW OF NORTH AMERICA, INC.

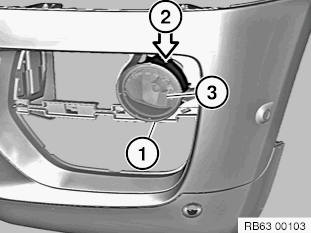

Disconnect plug connection (1). Press clamp (2) in direction of arrow. Remove fog light (3) towards front. Installation note: Make sure fog light (1) is correctly seated.

Fig 3: Removing Fog Light Toward Front

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement: If necessary, remove bulb . Adjust front fog lamps .
