63 14 120 Removing and installing/replacing rear reflector (rear fog light)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear bumper trim , see 51 12 157 REPLACING REAR BUMPER TRIM .
If necessary, disconnect plug connection for rear fog light.

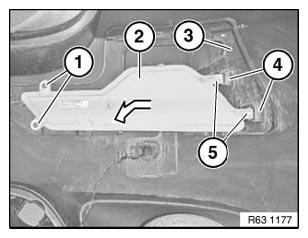

Release screws (1). Tightening torque 63 14 1AZ , see 63 14 CLEARANCE AND SIDE LIGHTS .
Feed reflector (2) in direction of arrow out of bumper trim (3).
Installation:
Make sure guides (5) of reflector (2) are correctly seated in associated mountings (4) of bumper trim (3).
