51 12 157 Replacing rear bumper trim

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Pictures created using the X6 3.0 i as an example. There may be differences in detail in the case of other models.
Necessary preliminary tasks:

Remove rear bumper trim, see 51 12 223 Removing and installing/replacing trim for rear bottom middle bumper trim .
Remove rear reflector with rear fog light, see 63 14 120 REMOVING AND INSTALLING/REPLACING REAR REFLECTOR (REAR FOG LIGHT) .

Version with Park Distance Control (PDC):

Remove ultrasonic transducer (1), see REAR LEFT ULTRASONIC TRANSDUCER , REAR RIGHT ULTRASONIC TRANSDUCER , REAR MIDDLE LEFT ULTRASONIC TRANSDUCER , and REAR MIDDLE RIGHT ULTRASONIC TRANSDUCER .

Unclip wiring harness (2).

Installation:

Check wiring harness for damage, replace if necessary.

Make sure wiring harness is correctly seated.

Fig 1: Identifying Ultrasonic Transducer And Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Remove panel from bumper side section (1), see 51 12 210 Removing and installing trim on rear left or right bumper side section .

Remove lower bumper trim section (2), see 51 12 162 Removing and installing/replacing rear bottom middle bumper trim .

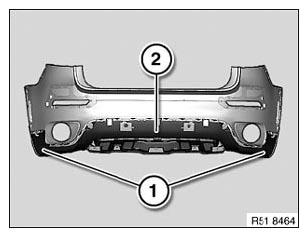

Fig 2: Identifying Lower Bumper Trim Section And Bumper Side Section

Courtesy of BMW OF NORTH AMERICA, INC.
