52 26 020 Removing and installing/replacing backrest for left or right rear seat
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim on C-pillar on left or right, see 51 43 230 REMOVING AND INSTALLING/REPLACING TRIM ON C-PILLAR AT BOTTOM LEFT OR RIGHT .
- Remove rear seat , see 52 26 000 Removing and installing/replacing left or right rear seat .

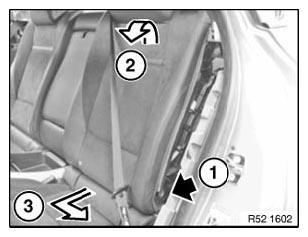

Right backrest:
NOTE:
Use a short Torx attachment to release screw (1).
- Release screw (1).
Tightening torque: 52 26 04AZ , see 52 26 REAR SEATS (THROUGH-LOADING SYSTEM) .
- Fold backrest forwards slightly (2)
- Pull backrest forwards and outwards out of center mount (3)

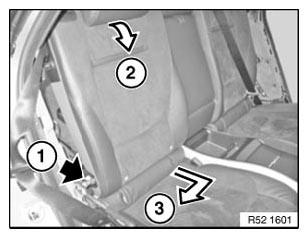

Left backrest:
- Release screw (1).
Tightening torque: 52 26 04AZ , see 52 26 REAR SEATS (THROUGH-LOADING SYSTEM) .
- Fold backrest forwards slightly (3)
- Pull backrest forwards and outwards out of center mount (4)
