51 45 075 Removing and installing support for instrument panel

Necessary preliminary tasks:

• Remove instrument panel trim, see 51 45 030 Removing and installing instrument panel trim .

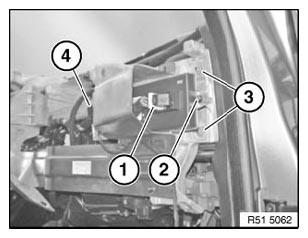

Disconnect plug connection (1).

Release screw (2) and remove control unit.

Unscrew nuts (3).

Tightening torque 51 45 1AZ  , see 51 45 TRIM, INSTRUMENT PANEL .

Unclip wiring harness (4).

Fig 1: Identifying Wiring Harness And Plug Connection With Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fig 2: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

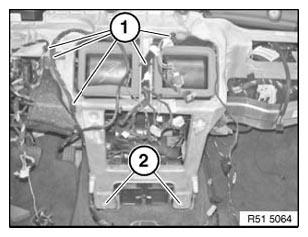

Unclip wiring harness (1).

Unfasten screws (2).

Tightening torque 51 45 4AZ  , see 51 45 TRIM, INSTRUMENT PANEL .

Fig 3: Identifying Wiring Harness And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull center console approx. 130 mm towards rear.

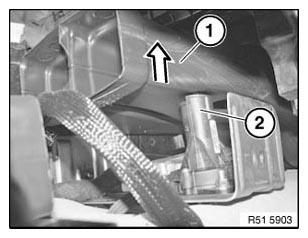

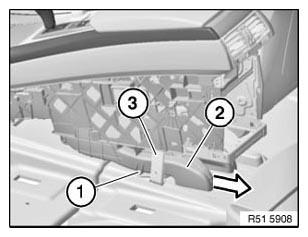

Lift rear cabin heating duct (1) over transmission emergency release (2).

Fig 4: Lifting Rear Cabin Heating Duct

Courtesy of BMW OF NORTH AMERICA, INC.

A/C system with four-zone control:

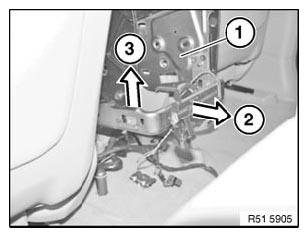

Pull center console (1) approx. 130 mm towards rear (2) and raise at rear approx. 120 mm (3).

Fig 5: Pulling Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.

A/C system with four-zone control:

Release screws (1) on left and right.

Pull back rear cabin fan (2) up to holder (3).

Fig 6: Pulling Back Rear Cabin Fan Up To Holder

Courtesy of BMW OF NORTH AMERICA, INC.

A/C system with four-zone control:

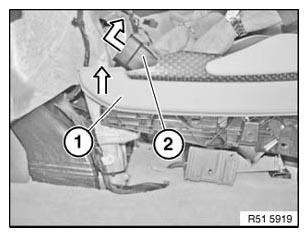

Raise center console (1) at front and feed out heating duct (2) towards top.

Fig 7: Identifying Centre Console And Heating Duct

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, pull off knee protection (1).

Fig 8: Pulling Knee Protection

Courtesy of BMW OF NORTH AMERICA, INC.

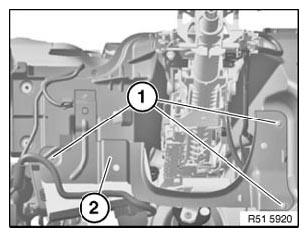

If necessary, release screws (1).

Remove knee protection support plate (2).

Fig 9: Identifying Knee Protection Support Plate Screws

Courtesy of BMW OF NORTH AMERICA, INC.

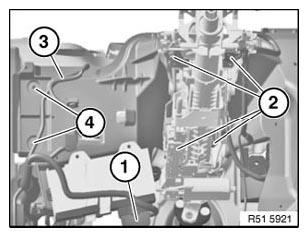

Disconnect plug connection (1) and remove control units from control unit box.

Unfasten screws (2).

Tightening torque 32 31 1AZ  , see 32 31 STEERING COLUMN .

Lower steering column.

Unclip wiring harness (3).

Unscrew nuts (4).

Tightening torque 51 45 1AZ  , see 51 45 TRIM, INSTRUMENT PANEL .

Release diagnosis socket.

Fig 10: Identifying Plug Connection And Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

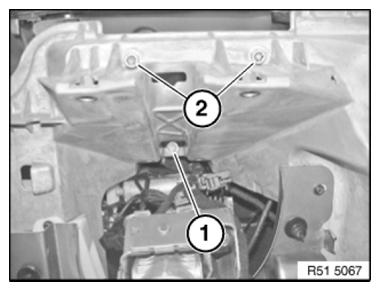

Release screw (1).

Tightening torque 51 45 4AZ  , see 51 45 TRIM, INSTRUMENT PANEL .

Unfasten screws (2).

Tightening torque 51 45 3AZ  , see 51 45 TRIM, INSTRUMENT PANEL .

Remove support for instrument panel.

Fig 11: Identifying Instrument Panel Carrier Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
