51 45 030 Removing and installing instrument panel trim

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Move wheels into straight-ahead position
Move front seats back completely and lower
Retract steering wheel completely and lower
Clamp off battery negative lead, see 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove both trims for front roof pillar, see 51 43 201 Removing and installing/replacing trim for roof pillar at front (A-pillar), left or right .
If necessary, remove trim for head-up display, see 62 30 005 REMOVING AND INSTALLING/REPLACING TRIM FOR HEAD-UP DISPLAY .
Remove light operator unit, see 61 31 037 REMOVING AND INSTALLING/REPLACING LIGHT CONTROL UNIT .
Remove side cover on instrument panel on left and right, see 51 45... Replacing side cover on instrument panel .
Remove steering-column switch cluster, see 61 31 008 REMOVING AND INSTALLING/REPLACING STEERING COLUMN SWITCH CLUSTER (SZL) .
Remove instrument cluster, see 62 11 280 REMOVING AND INSTALLING (REPLACING) INSTRUMENT CLUSTER .
Remove Car Communication Computer, see 65 83 010 REMOVING AND INSTALLING/REPLACING CAR COMMUNICATION COMPUTER .
Remove Central Information Display, see 65 50 057 REMOVING AND INSTALLING REPLACING CENTRAL INFORMATION DISPLAY (CID) .
Pull back center console, refer to REMOVING COMPLETE CENTRE CONSOLE .

Release screw (1).

Fig 1: Identifying Instrument Panel Trim Screw

G04791802

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Fig 2: Identifying Instrument Panel Trim Screw

G04791803

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) on control unit for Car Access System (3).

Unfeed plug connections (1) with cables.

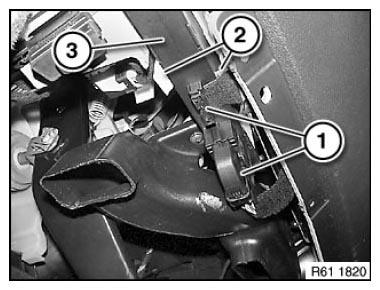

Fig 3: Identifying Plug Connection, Latch Mechanism And Car Access System

G08530583

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) for front passenger's airbag and speaker.

Unclip plug housing.

Unfasten screws (2).

Fig 4: Identifying Plug Connections With Screws

G04791804

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Fig 5: Identifying Screws

G04791805

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip plate (1).

Fig 6: Uncoupling Plate

G04791806

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fig 7: Identifying Screw

G04791807

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Fig 8: Identifying Plug Connection

G04791808

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fig 9: Identifying Screw

G04791809

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed out instrument panel trim towards rear and remove.

Fig 10: Identifying Instrument Panel Trim Screws

G04791810

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure guides (1) of instrument panel trim are correctly seated in relevant mountings (2).

Fig 11: Identifying Guides And Relevant Mountings

G04791811

Courtesy of BMW OF NORTH AMERICA, INC.
