51 23 110 Removing and installing/replacing left hood/bonnet lock

Necessary preliminary tasks:

• Remove front assembly underside protection, see 51 47 490 Removing and installing/replacing front underbody protection .
• Partially drain and top up coolant, see 17 00 005 DRAINING AND ADDING COOLANT (N54) or 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR WATER LEAKS (N54) .

Unclip coupling (1) from side panel.

Lever out cover (2) at coupling (1).

Lever cable (3) out of coupling (1).

Fig 1: Identifying Cable And Coupling

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out expander rivets on transverse reinforcement. Press lock (1) and raise intake duct (2). Detach intake duct (2) from air filter housing in direction of arrow and remove.

Fig 2: Detaching Intake Duct From Air Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws on left and right sides of transverse reinforcement (1). Tightening torque 51 71 4AZ  , see 51 71 SEALS AND LOOSE BODY PARTS . Remove transverse reinforcement (1).

Fig 3: Identifying Transverse Reinforcement

Courtesy of BMW OF NORTH AMERICA, INC.

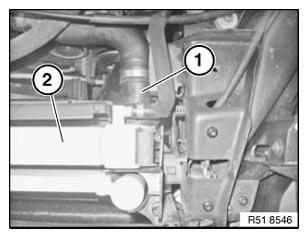

Unlock coolant hose (1) from radiator (2) and detach.

Fig 4: Identifying Coolant Hose And Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 23 2AZ  , see 51 23 HOOD/BONNET LOCKS .

Fig 5: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Identifying Hood/Bonnet Lock And Through Opening

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Disengaging Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
