32 41 311 Replacing intake pipe for hydraulic steering (N54/N55): Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with plugs.
Close off pipe connections with plugs.
Recycling:
Catch and dispose of hydraulic fluid in a suitable container.
Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from fluid reservoir
- Remove FRONT UNDERBODY PROTECTION
- Remove rear left CHARGE AIR DUCT
- Remove OIL RESERVOIR
Expose suction line up to connection on vane pump.

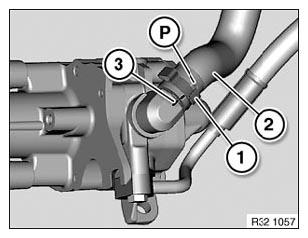

Unfasten hose clip (1).
Detach suction line (2) from vane pump.
Installation:
Identification (P) and rib (3) on vane pump connection must match up.
When installing the suction line, make sure it is laid without tension and there is a sufficient gap to the adjacent components.
