37 14 511 Replacing front right ride-height sensor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle

NOTE: Jointed rod on upper control arm 37 14 5AZ .

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove front right WHEEL ARCH TRIM

Disconnect plug connection (1).

Release nut (2) and disconnect jointed rod.

Installation note:

Sensor lever (3) must point from ride-height sensor to right front wheel.

Replace self-locking nut.

Tightening torque 37 14 4AZ .

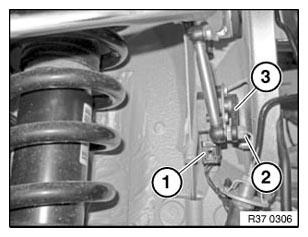

Fig 1: Identifying Plug Connection, Nut And Sensor Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1) and remove ride-height sensor with bracket.

Installation note:

Align ride-height sensor holder by means of lug (2) to opening under screw (1).

Tightening torque 37 14 1AZ .

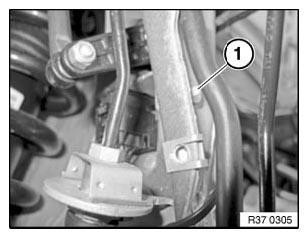

Fig 2: Identifying Ride-Height Sensor With Bracket Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove holder (2).

Tightening torque 37 14 3AZ .

Fig 3: Identifying Screws And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out RIDE-HEIGHT-CALIBRATION
Check HEADLIGHT ADJUSTMENT , correct if necessary
