61 11 210 Installing repair cable for left exterior mirror camera

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect battery negative lead.
Remove trim panel for door post, bottom left.
Remove front left entrance strip.
Remove PANEL FOR PEDALS
Remove footwell side trim panel on A-pillar, left. See 51 43 070 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, LEFT .
Remove footwell module .

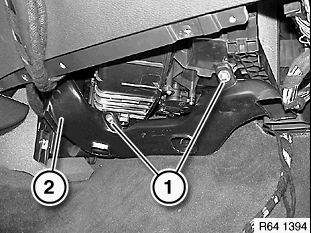

On driver's side, release screws (1) and remove air duct (2).

Fig 1: Removing Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

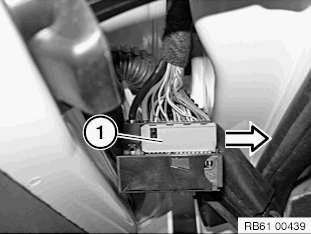

Unlock the lock (1) in direction of arrow with suitable tool.

IMPORTANT: Risk of damage!

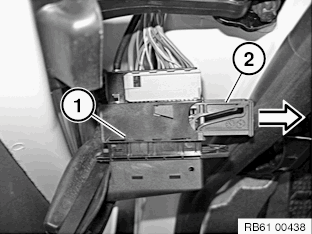

Unlock the lock (3) carefully with a suitable tool. Pull connector housing (4) of line (2) in direction of arrow.

Installation note: Pay attention to encoding (5)!

Fig 2: Unlocking Connector Lock

Courtesy of BMW OF NORTH AMERICA, INC.

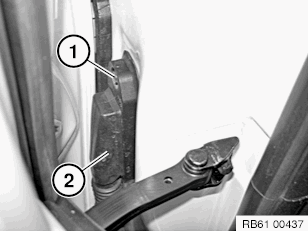

Release screw (1). Pull out plug connection (2) from A-pillar.

Fig 3: Pulling Out Plug Connection From A-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

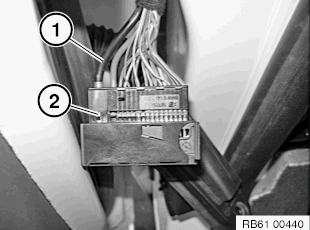

Open lock (2). Disconnect plug connection (1).

Fig 4: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

On both sides, remove secondary lock (1) and pull off in direction of arrow.

Fig 5: Removing Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.

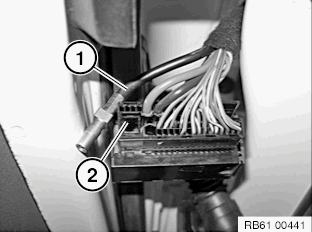

Release lock (2) and pull off cable (1). Tie back pulled-off cable (1) on wiring harness.

Fig 6: Release Lock And Pull Off Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Guide repair cable (1) through opening in A-pillar into passenger compartment. Secure repair cable (1) to wiring harness with insulating tape. Insert repair cable (1) into slot (2).

Fig 7: Guiding Repair Cable Through Opening In A-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

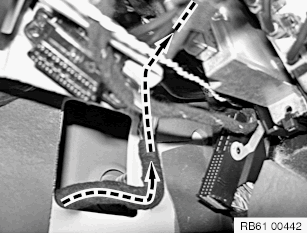

Route repair cable along wiring harness in direction of arrow and secure.

Fig 8: Routing Repair Cable

Courtesy of BMW OF NORTH AMERICA, INC.

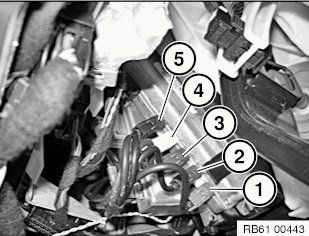

Pull off connector (5) from all-round vision camera control unit. Tie back cable that has been pulled off to the wiring harness. Attach repair cable at free slot.

Fig 9: Pulling Off Connector From Vision Camera Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Lay any repair cable overlength under carpet and secure. Once the camera has been successfully checked, cut off old cable connector.

Plug 1	Bumper camera, right
Plug 2	Exterior mirror camera, right
Plug 3	Reversing camera
Plug 4	Bumper camera, left
Plug 5	Exterior mirror camera, left
