51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317 , see 00 9 317 TRIM PANEL WEDGE

Necessary preliminary tasks:

Remove front entrance cover strip, see front (inside) entrance cover strip and rear (inside) entrance cover strip .
Remove trim panel for pedal assembly, see Removing and installing/replacing panel for pedals .

Detach mucket (1) in area of footwell trim.

Release screw (2) and remove release lever (3).

Fig 1: Removing Release Lever

G04788762

Courtesy of BMW OF NORTH AMERICA, INC.

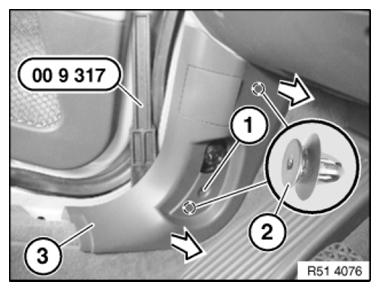

Release screw (1).

Unclip clips (2) with special tool 00 9 317 .

Remove trim panel (3) towards inside.

Fig 2: Removing Trim Panel Using Special Tool (00 9 317)

G08529316

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clips (1) on trim panel (2) must not be damaged.

Fig 3: Identifying Trim Panel Clips

G04788764

Courtesy of BMW OF NORTH AMERICA, INC.
