61 35 115 Removing and installing/replacing footwell module: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection)
.
Necessary preliminary tasks:
- Disconnect battery negative lead
- Remove footwell side trim panel on A-pillar, left . See 51 43 070 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, LEFT .

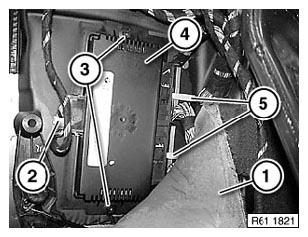

Fold back carpet (1) in area of A-pillar a little.
Disconnect plug connection (2).
Release plastic nuts (3).
Pull footwell module (4) forwards a little.
Disconnect plug connection (5).
