24 50 030 Replacing selector shaft (GA6L45R)

WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: After completion of work, check transmission fluid level, see 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R) .
Use only approved transmission oil .
Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Remove mechatronics
Remove selector shaft seal
Remove transmission (AWD only)

Drive a metal pin (1) - dia. approx. 3 mm - into clamping pin (2) (to prevent clamping pin from being compressed). Grip clamping pin (2) with side nippers.

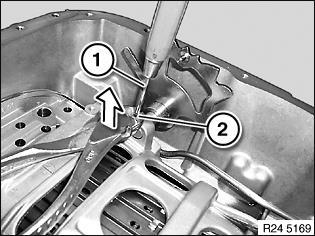

Fig 1: Grip Clamping Pin (2) With Side Nippers

Courtesy of BMW OF NORTH AMERICA, INC.

Drive clamping pin (2) with a suitable tool out of selector shaft. Remove selector shaft.

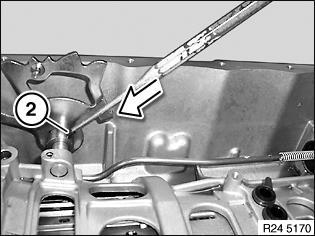

Fig 2: Drive Clamping Pin (2) With A Suitable Tool Out Of Selector Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
