24 14 003 Replacing selector shaft seal (GA6L45R)

WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

24 4 381
24 4 382
24 5 361
24 5 362

IMPORTANT: After completion of work, check transmission fluid level, see 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R) . Use only approved transmission oil, see 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R) . Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks: Remove heat shields.

Slacken nut (1). Take off holder (2). Tightening torque 24 51 1AZ. After completing work: Adjust shift lever.

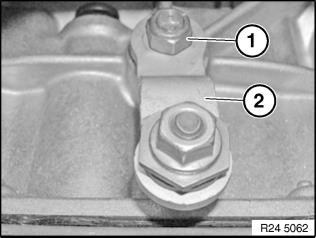

Fig 1: Slacken Nut (1) And Take Off Holder (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 24 5 361 until it is firmly connected with shaft seal.

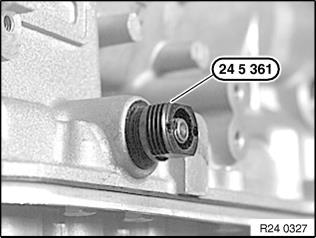

Fig 2: Screw In Special Tool 24 5 361

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 24 5 362 onto special tool 24 5 361 and tighten down. This pulls the shaft seal out of the transmission housing.

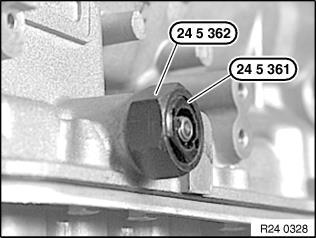

Fig 3: Screw Special Tool 24 5 362 Onto Special Tool 24 5 361

Courtesy of BMW OF NORTH AMERICA, INC.

Oil sealing lip on shaft seal. Screw in shaft seal with special tools 24 4 381 and 24 4 382 as far as it will go.

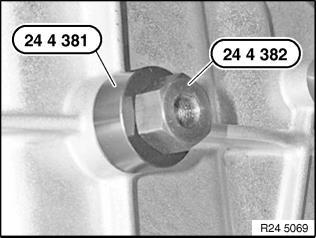

Fig 4: Screw In Shaft Seal With Special Tools 24 4 381 And 24 4 382

Courtesy of BMW OF NORTH AMERICA, INC.
