11 31 025 Removing and installing or replacing the intake camshaft (M57T2-SCR)

Necessary preliminary work:

REMOVE CYLINDER HEAD COVER

Crank engine at crankshaft with special tool 11 6 480.

The cams on the intake camshaft at the 1st cylinder point downwards.

Release screw (1).

NOTE: Bolt (1) must be removed beforehand as it is no longer accessible in TDC setting.

Camshaft sprocket classification (0) value from 0 to 9

Tightening torque, see 11 31 1AZ in 11 31 CAMSHAFT .

Fig 1: Identifying Intake Camshaft Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screw plug in the gear case cover at bottom.

Fig 2: Locating Screw Plug On Gear Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: No piston is permitted to be in the TDC setting Risk of damage .
Crank engine back at crankshaft through 45°.

Turn exhaust camshaft at hexagon head in direction of arrow.

The hydraulic chain tensioner can be secured in place in this position with special tool 11 3 340.

Fig 3: Turning Exhaust Camshaft On Hexagon Head

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The hydraulic chain tensioner is forced back by rotating the exhaust and intake camshafts.

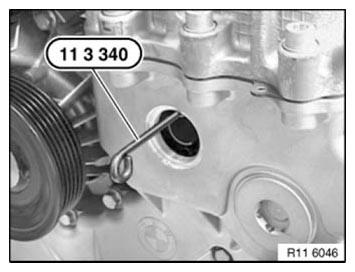

Lock hydraulic chain tensioner with special tool 11 3 340.

NOTE: If the camshaft sprocket is removed without the hydraulic chain tensioner being locked, the chain tensioner piston will slip out and can then only be pressed back again with a considerable amount of effort.

Fig 4: Locking Hydraulic Chain Tensioner Using Special Tool (11 3 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective cap in direction of arrow.

Installation note:

Reinstall protective cap with some grease.

Fig 5: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine at crankshaft with special tool 11 6 480.

Secure crankshaft at flywheel with special tool 11 6 080.

Fig 6: Securing Crankshaft On Flywheel Using Special Tool (11 6 080)

Courtesy of BMW OF NORTH AMERICA, INC.

Release camshaft sprocket bolts (1).

Tightening torque, see 11 31 1AZ in 11 31 CAMSHAFT .

Release bearing journal (2) of guide rails.

Fig 7: Identifying Camshaft Sprocket Bolts And Bearing Journal Of Guide Rails

Courtesy of BMW OF NORTH AMERICA, INC.

Release camshaft sprocket with chain (1) from intake camshaft in direction of arrow.

Release guide rail (2) from bracket and pull out in direction of arrow.

Fig 8: Releasing Camshaft Sprocket With Chain From Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Remove camshaft sprocket (2) in direction of arrow to right from timing chain (3) and remove towards top.

Fig 9: Removing Camshaft Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1) of intake camshaft bearing cap in 1/2 revolution increments evenly from outside to inside.

NOTE: Illustration shows M57TU.

Fig 10: Loosening Screws Of Intake Camshaft Bearing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bearing caps of intake camshaft and lift out intake camshaft (1).

All bearing caps are marked.

E= intake camshaft.

A = exhaust camshaft.

Fig 11: Lifting Out Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Worn rocker arms may only be reused on the same grooves of the camshaft.

Fig 12: Identifying Rocker Arms

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: These screws must "not" be removed.

Fig 13: Caution For Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: E Intake camshaft
A Exhaust camshaft

Fig 14: Identifying Intake And Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Insert intake camshaft.

Position (1) of intake camshaft gear flush with cylinder head.

Position (2) of exhaust camshaft gear flush with cylinder head.

If necessary, re-secure camshafts.

Fig 15: Identifying Positions Of Intake And Exhaust Camshaft Gears

Courtesy of BMW OF NORTH AMERICA, INC.

Mark (1) on intake camshaft must be between marks (2) on exhaust camshaft.

See graphic.

Fig 16: Identifying Marks On Intake And Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

The intake camshaft bearing caps are legibly marked E 1... E 7 from the exhaust side.

Fit bearing caps.

Fig 17: Identifying Markings Of Intake Camshaft Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Insert all screws (1) and initially tighten so that they are free of play.

Tighten down intake camshaft bearing caps in 1/2 revolution increments evenly from inside to outside.

Fig 18: Inserting Intake Camshaft Bearing Caps Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Mount camshaft sprocket and release chain tensioner.

Cams of both camshafts must point to top right.

Fit special tool 11 6 321 on intake camshaft.

Secure special tool 11 6 321 with special tool 11 6 322.

Installation note:

The exhaust camshaft only has to be checked, setting is not possible.

Fig 19: Fitting Special Tool (11 6 321) On Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 6 254 on the cylinder head with screws (1).

Fig 20: Securing Special Tool (11 6 254) To Cylinder Head With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Check intake camshaft side clearance.

Set up special tool 11 6 252 with dial gauge.

Refer to TECHNICAL DATA

Procedure for exhaust camshaft is identical.

Fig 21: Checking Intake Camshaft Side Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust VALVE TIMING .

Assemble engine.
