11 31 025 Removing and installing or replacing the exhaust camshaft (M57T2-SCR)

Necessary preliminary work:

Remove protective cap in direction of arrow.

Installation note:

Reinstall protective cap with some grease.

Fig 1: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine at central bolt.

Secure crankshaft at flywheel with special tool 11 6 080.

Fig 2: Securing Crankshaft On Flywheel Using Special Tool (11 6 080)

Courtesy of BMW OF NORTH AMERICA, INC.

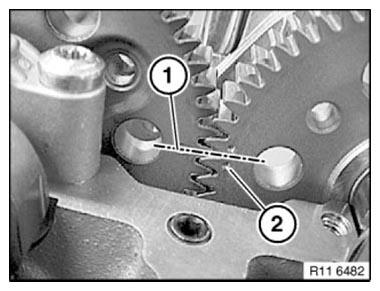

Position (1) of intake camshaft gear flush with cylinder head.

Position (2) of exhaust camshaft gear flush with cylinder head.

Fig 3: Identifying Positions Of Intake And Exhaust Camshaft Gears

Courtesy of BMW OF NORTH AMERICA, INC.

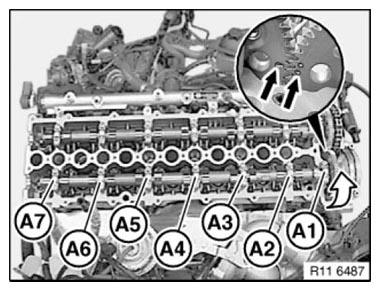

Evenly release bolts of intake camshaft bearing caps A1 to A7 in 1/2 revolution increments from outside to inside.

Remove exhaust camshaft in direction of arrow.

Fig 4: Removing Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Worn rocker arms may only be reused on the same grooves of the camshaft.

Fig 5: Identifying Rockers

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: These screws must "not" be removed.

Fig 6: Caution For Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: E Intake camshaft

A Exhaust camshaft

Fig 7: Identifying Inlet And Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Insert exhaust camshaft.

Position (1) of intake camshaft gear flush with cylinder head.

Position (2) of exhaust camshaft gear flush with cylinder head.

If necessary, re-secure camshafts.

Fig 8: Identifying Positions Of Intake And Exhaust Camshaft Gears

Courtesy of BMW OF NORTH AMERICA, INC.

Marking (1) on intake camshaft must be between markings (2) on exhaust camshaft.

See graphic.

Fig 9: Identifying Marking On Intake And Exhaust Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

The exhaust camshaft bearing caps are legibly marked A 1... A 7 from the exhaust side.

Oil all bearing positions.

Fit bearing caps.

Insert all bolts and initially tighten without play.

Tighten down exhaust camshaft bearing caps in 1/2 revolution increments evenly from inside to outside.

Fig 10: Tightening Exhaust Camshaft Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Cams of both camshafts must point to top right.

Place special tool 11 6 321 on exhaust camshaft.

Secure special tool 11 6 321 with special tool 11 6 322.

Installation note:

The exhaust camshaft only has to be checked, setting is not possible.

Fig 11: Placing Special Tool (11 6 321) On Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 6 254 on the cylinder head with screws (1).

NOTE: See graphic.

Fig 12: Securing Special Tool (11 6 254) To Cylinder Head With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Check exhaust camshaft side clearance.

Set up special tool 11 6 252 with dial gauge.

Refer to TECHNICAL DATA

NOTE: Illustration shows intake camshaft.

Procedure for exhaust camshaft is identical.

Fig 13: Checking Exhaust Camshaft Side Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, adjust VALVE TIMING .

Assemble engine.
