11 31 001 Replacing camshafts (M57T2- SCR)

Necessary preliminary work:

Crank engine at crankshaft with special tool 11 6 480.

The cams on the intake camshaft at the 1st cylinder point downwards.

Release screw (1).

NOTE: Bolt (1) must be removed beforehand as it is no longer accessible in TDC setting.

Camshaft sprocket classification (0) value from 0 to 9

Tightening torque, see 11 31 1AZ in 11 31 CAMSHAFT .

Fig 1: Identifying Intake Camshaft Bolts And Camshaft Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

Undo screw plug in gear case cover at bottom.

Fig 2: Locating Screw Plug On Gear Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: No piston is permitted to be in the TDC setting Risk of damage .
Crank engine back at crankshaft through 45°.

Turn exhaust camshaft at hexagon head in direction of arrow.

The hydraulic chain tensioner can be secured in place in this position with special tool 11 3 340.

NOTE: The hydraulic chain tensioner is forced back by rotating the exhaust and intake camshafts.

Fig 3: Turning Exhaust Camshaft On Hexagon Head

Courtesy of BMW OF NORTH AMERICA, INC.

Lock hydraulic chain tensioner with special tool 11 3 340.

NOTE: If the camshaft sprocket is removed without the hydraulic chain tensioner being locked, the chain tensioner piston will slip out and can then only be pressed back again with a considerable amount of effort.

Fig 4: Locking Hydraulic Chain Tensioner Using Special Tool (11 3 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective cap in direction of arrow.

Installation note:

Reinstall protective cap with some grease.

Fig 5: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine at crankshaft with special tool 11 6 480.

Secure crankshaft at flywheel with special tool 11 6 080.

Fig 6: Securing Crankshaft On Flywheel Using Special Tool (11 6 080)

Courtesy of BMW OF NORTH AMERICA, INC.

Release camshaft sprocket bolts (1).

Release bearing journals (2) of guide rails.

Installation note:

Replace bearing journals (2).

Fig 7: Identifying Camshaft Sprocket Bolts And Bearing Journals

Courtesy of BMW OF NORTH AMERICA, INC.

Release camshaft sprocket with chain (1) from intake camshaft in direction of arrow.

Release guide rail (2) from bracket and pull out in direction of arrow.

Fig 8: Releasing Camshaft Sprocket With Chain From Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Remove camshaft sprocket (2) in direction of arrow to right from timing chain (3) and remove towards top.

Fig 9: Removing Camshaft Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) of camshaft bearing cap in 1/2 revolution increments evenly from outside to inside.

Fig 10: Releasing Camshaft Bearing Caps Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bearing caps and camshafts.

All bearing caps are marked.

Fig 11: Removing Bearing Caps And Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Worn rocker arms may only be reused on the same grooves of the camshaft.

Fig 12: Identifying Rocker Arms

Courtesy of BMW OF NORTH AMERICA, INC.

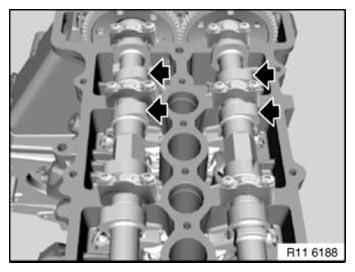

IMPORTANT: These screws must "not" be removed.

Fig 13: Caution For Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: E Intake camshaft
A Exhaust camshaft

Fig 14: Identifying Intake And Exhaust Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Align camshafts so that cam peaks of intake and exhaust camshafts of 1st cylinder point in direction of travel to right.

NOTE: See graphic.

Fig 15: Locating Inlet And Exhaust Cams

Courtesy of BMW OF NORTH AMERICA, INC.

Install camshaft.

Align marking (1) on intake camshaft flush with cylinder head.

Marking (2) on exhaust camshaft flush with cylinder head.

Fig 16: Identifying Markings Of Intake And Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Mark (1) on intake camshaft must be between marks (2) on exhaust camshaft.

See graphic.

Fig 17: Identifying Marks On Intake And Exhaust Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

The intake camshaft bearing caps are marked E 1... E 7 from the exhaust side.

The exhaust camshaft bearing caps are marked A 1... A 7 from the exhaust side.

Fit bearing caps.

Fig 18: Identifying Markings Of Intake And Exhaust Camshaft Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Insert all screws (1) and initially tighten so that they are free of play.

Tighten down camshaft bearing caps in 1/2 revolution increments evenly from inside to outside.

Fig 19: Inserting Camshaft Bearing Caps Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 6 254 onto cylinder head.

NOTE: See graphic.

Fig 20: Screwing Special Tool (11 6 254) Onto Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Check intake camshaft side clearance.

Set up special tool 11 6 250 with dial gauge.

Refer to TECHNICAL DATA

Fig 21: Checking Intake Camshaft Side Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust VALVE TIMING .

Assemble engine.
