34 41 ... Overview of Parking Brake

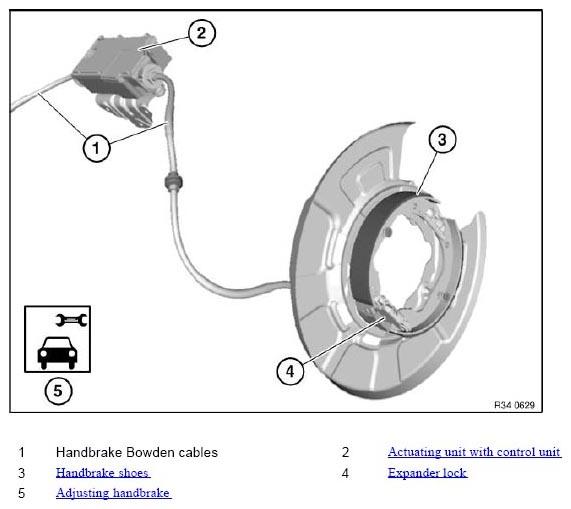

Fig 1: Identifying Parking Brake Components
G04794754Courtesy of BMW OF NORTH AMERICA, INC.
  1. Handbrake Bowden cables
  2. Actuating unit with control unit. See 34 41 280 Removing and Installing/Replacing Actuating Unit With Control Unit For Parking Brake (EMF)
  3. Handbrake shoes. See 34 41 220 Removing and Installing/Replacing All Handbrake Shoes
  4. Expander lock. See 34 41 250 Removing and Installing/Replacing Expander Lock For Handbrake Shoes
  5. Adjust handbrake. See 34 41 006 Adjusting Parking Brake ,34 41 682 Initializing Parking Brake (After Manual Unlocking Of Actuating Unit)
