51 12 090 Removing and installing/replacing trim grille in bumper trim

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks

Release catches (1) and remove center grille (2).

Installation:

Catches (1) must not be damaged

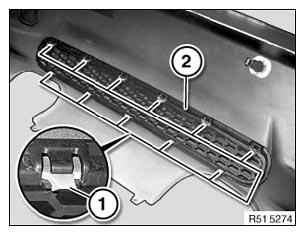

Fig 1: Identifying Catches And Centre Grille

Courtesy of BMW OF NORTH AMERICA, INC.
